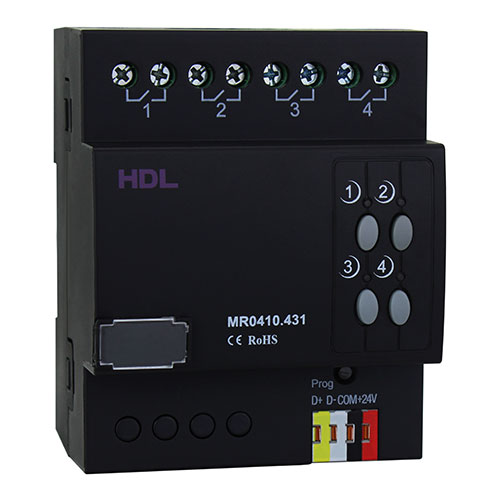

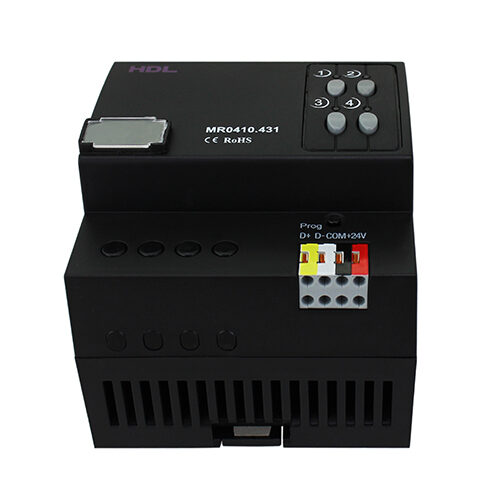

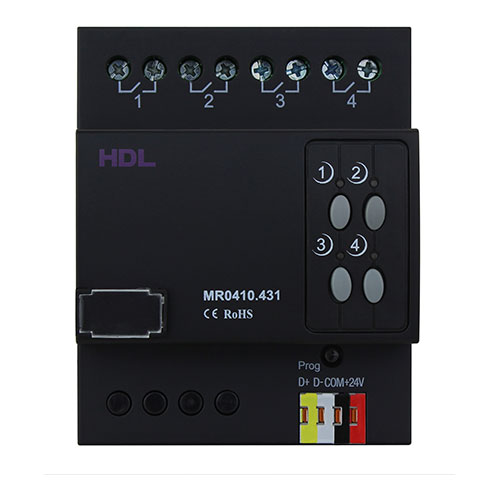

4CH 10A High Power Switch Actuator

4CH 10A High Power Switch Actuator has 4 channels (10A for each channel) and 16A magnetic latching relay. With low power consumption and long lifetime, the module has manual control switches and supports scene and sequence control.

Model: HDL-MR0410.431 Category:

Description

4CH 10A High Power Switch Actuator has 4 channels (10A for each channel) and 16A magnetic latching relay. With low power consumption and long lifetime, the module has manual control switches and supports scene and sequence control.

Đặc trưng

  • 4-channel relay output unit
  • Scene control and sequence control
  • Up to 4 separate zones.
  • 8 scenes for each zone, scene running time up to 60 minutes
  • 2 sequences for each zone, up to 4 steps for each sequence
  • Light protection delay for each channel (0-60 minutes)
  • 0-25s of bulk power-on time for each channel.
  • Manual switch for each channel
  • Selected scene or scene before power off automatically activated when device restarts
  • LED indicator: indicates current channel status.
  • HDL Buspro communication
  • Supports online upgrade

Thông số

Basic Parameters

Working voltage 15~30V DC Class 2
Working current 40mA/24V DC
Input voltage 120V/240V AC (50/60Hz)
Output channel 4CH/10A
Relay 16A Magnetic latching relay
Maximum current of each channel 10A
Electronic life time of relay >60000 (Resistance load)
Protection Connect a breaker in each channel

External Environment

Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%

Specifications

Dimensions 72mm×90mm×64mm
Net weight 252g
Housing material Nylon, PC
Installation
35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
