MOSFET Power Amplifier

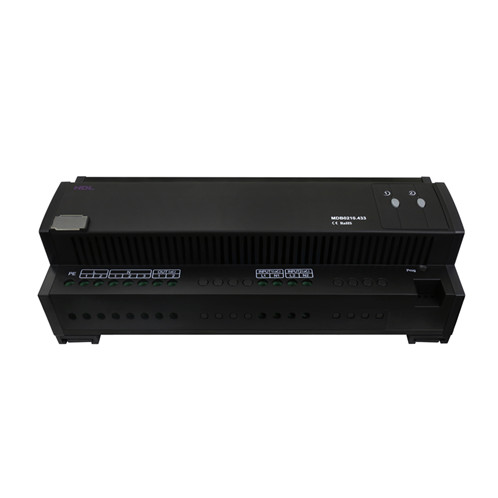

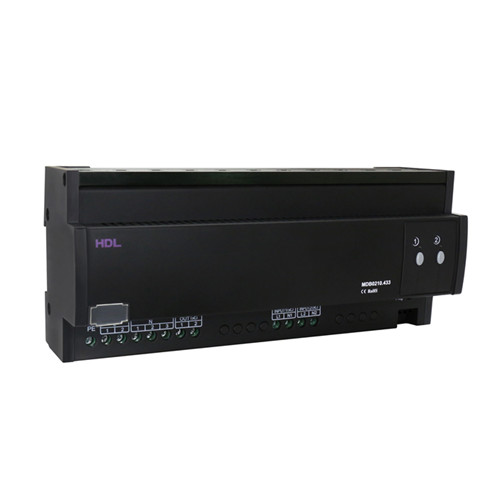

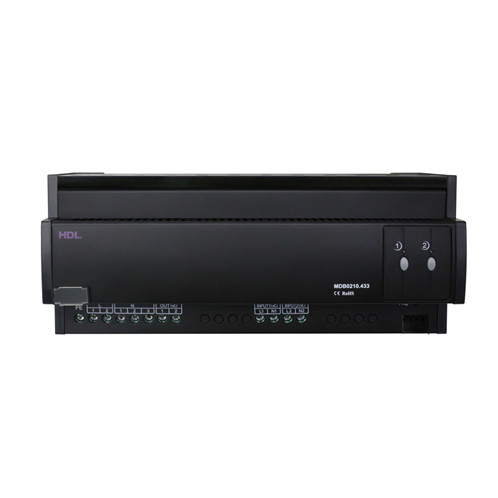

HDL-MDB0210.433 Mosfet power amplifier, work in conjunction with dimming module, used to increase the output current of the dimming module. It has 2 output channels and manual switch is available for each channel. And it has short circuit protection and over heat protection.

Model: HDL-MDB0210.433 Category:

Description

HDL-MDB0210.433 Mosfet power amplifier, work in conjunction with dimming module, used to increase the output current of the dimming module. It has 2 output channels and manual switch is available for each channel. And it has short circuit protection and over heat protection.

Đặc trưng

  • Mosfet dimming mode
  • It must work in conjunction with dimmer
  • Each output channel has LED status indicator and manual control switch
  • It has short circuit protection and over heat protection
  • When the temperature of the aluminum alloy radiator on the mosfet power amplifier reaches 80℃, the output power starts to decrease; when it reaches 85℃, stop to output power; when it goes down to 80℃, the output power starts to work again
  • Two output channels can be combined into one channel, the output current increase to 16A (The input is the first channel)

Thông số

Electrical Parameters:

AC power input AC110/230V
Output channel 2CH,10A/CH
Maximum output channel current in total 16A
Dimming mode Trailing edge

Environmental Conditions:

Working temperature -20℃~45℃
Working relative humidity Up to 90%
Storage temperature -20℃~+60℃
Storage relative humidity Up to 93%
Approved: CE, RoHS

Product Information:

Dimensions 216×90×66 (mm)
Weight 540.5(g)
Housing material Nylon, PC, Aluminum alloy

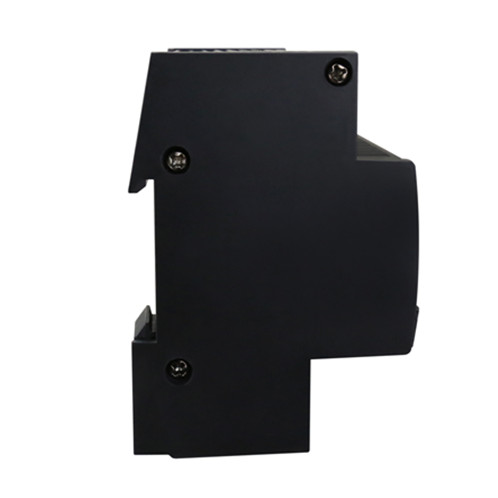

Installation 35mm Din Rail installation
Protection degree IP20
