Description
Wireless power interface, which is fire and null wire for dimmer, works with wireless panel, it has the function of dimming and switch.There are two sizes, EU and US.

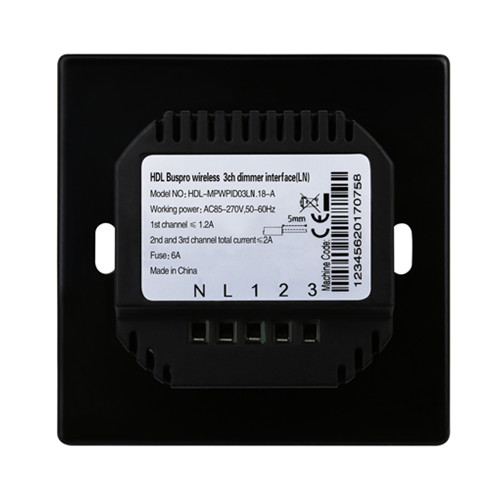

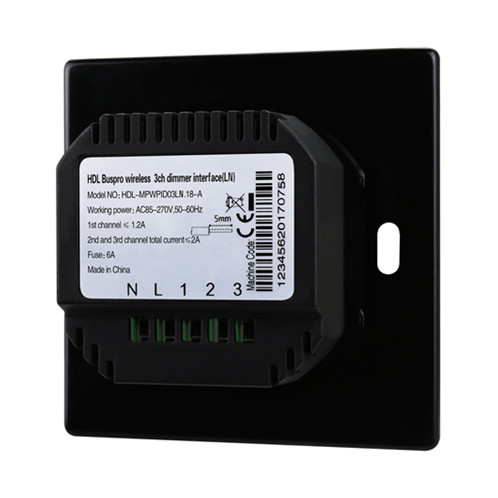

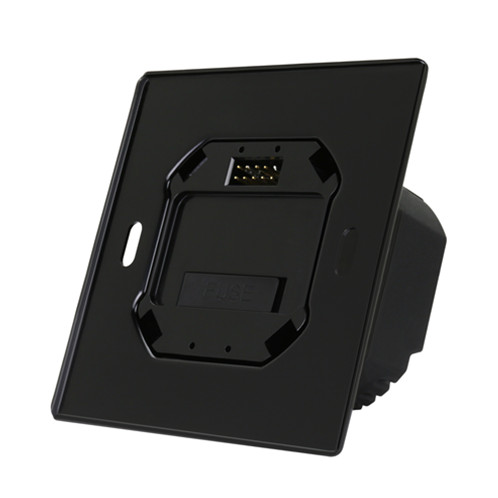

3CH Wireless Dimming Power Interface EU (L+N Type)
Wireless power interface, which is fire and null wire for dimmer, works with wireless panel, it has the function of dimming and switch.There are two sizes, EU and US.
Đặc trưng
- Supply DC5V power for wireless panels
- 1st channel is MOSFET dimming/switch 2nd and 3rd are TRIAC dimming/switch
- Short circuit protection
- Over heating protection
Thông số
Electrical Parameters
Product name 3CH fire and null wire dimming
Product number: HDL-MPWPID03LN.18-A (EU)
Working voltage: AC85-270V 50/60Hz
Output channel: 1channel/3 channels
Output current: 1st channel≤1.2A，2nd and 3rd channel total current≤2A
Fuse: 01LN: 4A, aR type. 03LN: 6A, aR type
Environmental Conditions:
Working temperature -5℃~45℃
Working relative humidity <90%<>
Storage temperature -20℃~+60℃
Storage relative humidity <93%<>
Approved: CE, RoHS
Product Information:
Dimensions: 80×80×39（mm）(EU)
Weight 128g/138g
Housing material Inflaming retarding nylon
Installation: wall box (the depth of wall box should not less than 45mm)
Protection rating IP20
Fire and null wire 2.5mm2 copper cable
Load wire 2.5mm2 copper cable
