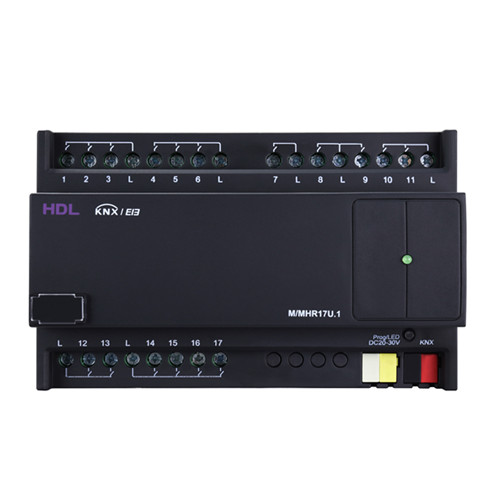

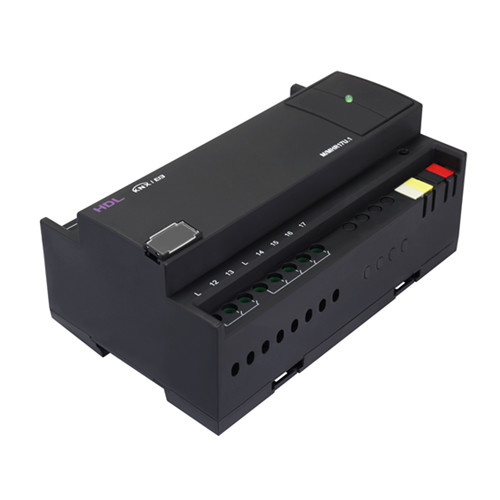

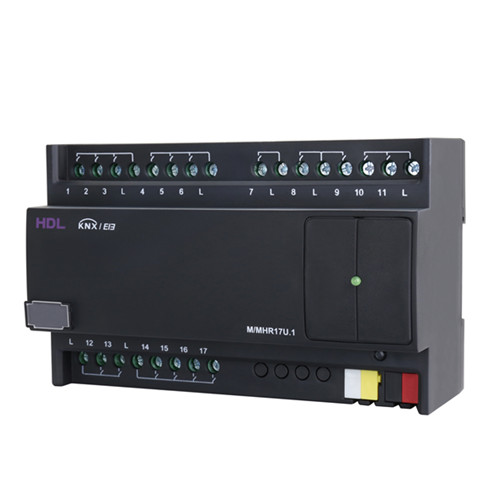

KNX 17CH Mix Actuator

KNX 17CH Mix Actuator is used for controlling relays, dimmers, curtains and air conditioners. The actuator supports 17CH control channels.

Model: M/MHR17U.1 Category:

Description

KNX 17CH Mix Actuator is used for controlling relays, dimmers, curtains and air conditioners. The actuator supports 17CH control channels.

Đặc trưng

  • Supports 17CH relay control channels
  • Among the 17 relay control channels, CH1-6 and 12-17 are TV8 5A relays, and CH7-11 are magnetic latching relays with an operating current of 10A.
  • The 17 relay control channels can be connected to loads, for example, incandescent lamps, halogen lamps, and LED lamps, etc. They can be used for fan speed control or mode control of airconditioning, and curtain control (supporting inching control).

Thông số

Basic Parameters

Working voltage 21~30V DC
Working current 14mA/30V DC
Auxiliary voltage 20~30V DC
Auxiliary current 97mA/30V DC
Input voltage AC100-240V (50/60Hz)
Output channel: 12CH/5A
TV8 relay (CH1-6, CH12-17), 5CH/10A
Magnetic latching relay (CH7-11)
Communication KNX
Cable diameter of KNX terminal 0.6-0.8mm

External Environment

Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%

Specifications

Dimensions 144mm×90mm×64mm
Net weight 469g
Housing material PA66

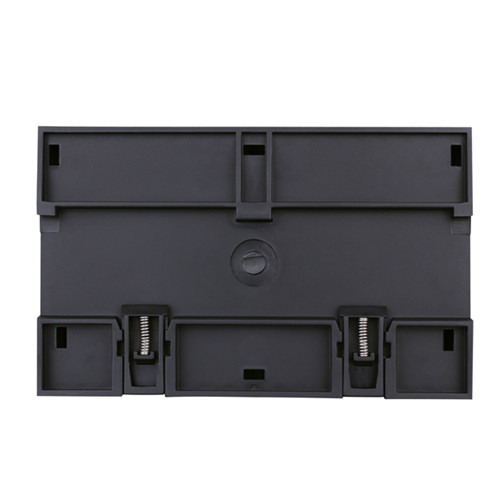

Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
