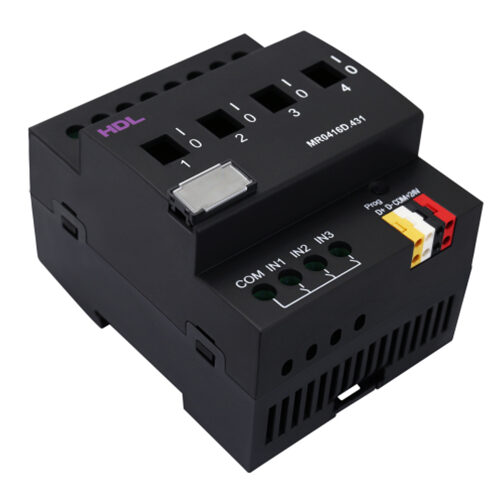

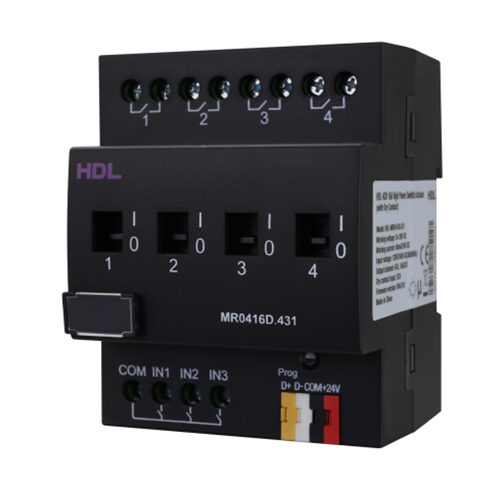

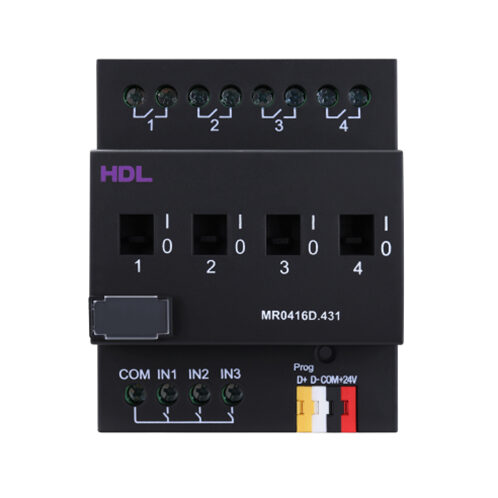

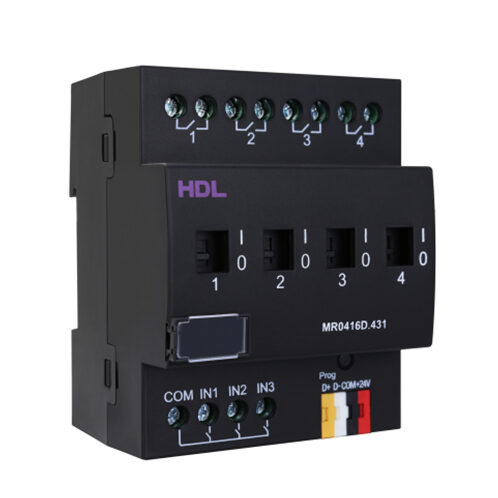

4CH 16A High Power Switch Actuator (with Dry Contact)

4CH 16A High Power Switch Actuator (with Dry Contact) has 4 channels(16A for each channel) and 50A magnetic latching relay. With low power consumption and long lifetime, the module has manual control switches and supports scene and sequence control.

Model: HDL-MR0416D.431 Category:

Description

4CH 16A High Power Switch Actuator (with Dry Contact) has 4 channels(16A for each channel) and 50A magnetic latching relay. With low power consumption and long lifetime, the module has manual control switches and supports scene and sequence control.

Đặc trưng

  • 4-channel relay output unit
  • 3dry contact channels
  • Scene control and sequence control
  • Up to 4 separate zones
  • Up to13 scenes for each zone, and 12 of which are available for editing, scene running time up to 60 minutes
  • 2 sequences for each zone, up to 12 steps for each sequence
  • Light protection delay for each channel (0-60 minutes)
  • Mass turn-on delay for each channel(0-25 seconds)
  • Manual switch for each channel
  • Stair lamp function of the channel settable
  • Selected scene or scene before power off automatically activated when device restarts
  • HDL Buspro communication
  • Supports online upgrade

Thông số

Basic Parameters

Working voltage： 24~30V DC
Working current： 40mA/24V DC
Input voltage： 120V/240V AC (50/60Hz)
Output channel：HDL-MR0416D.431: 4CH, 16A/CH
Dry contact input：HDL-MR0416D.431: 3CH
Relay ：50A Magnetic latching relay
Maximum current output of each channel ：16A
Electronic life time of relay ：>60000 (Resistive load)
Protection ：Connect a breaker to each channel

External Environment

Working temperature： -5℃~45℃
Working relative humidity： ≤90%
Storage temperature： -20℃~60℃
Storage relative humidity： ≤93%

Specifications

Dimensions：HDL-MR0416D.431: 72mm×90mm×64mm
Net weight：HDL-MR0416D.431: 264g
Housing material：Nylon, PC
Installation：35mm DIN rail installation
Protection rating (Compliant with EN 60529) ：IP20
