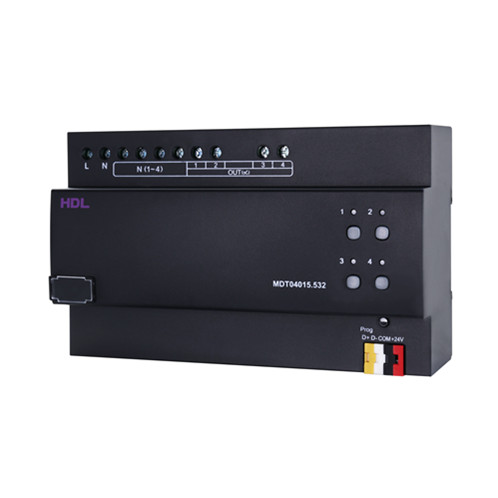

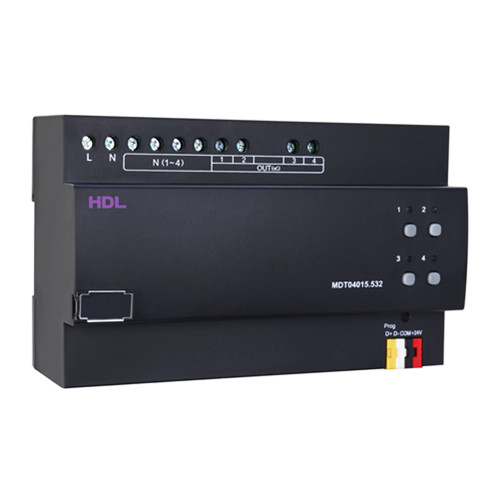

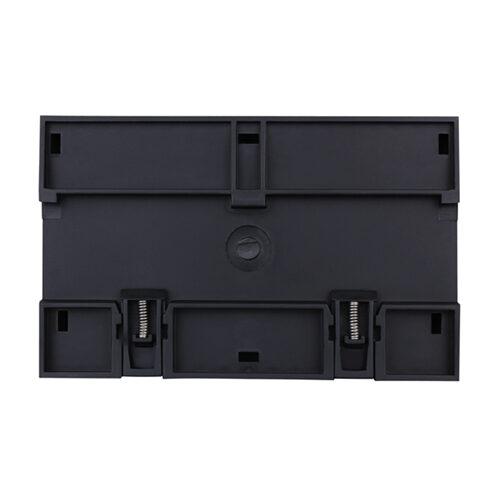

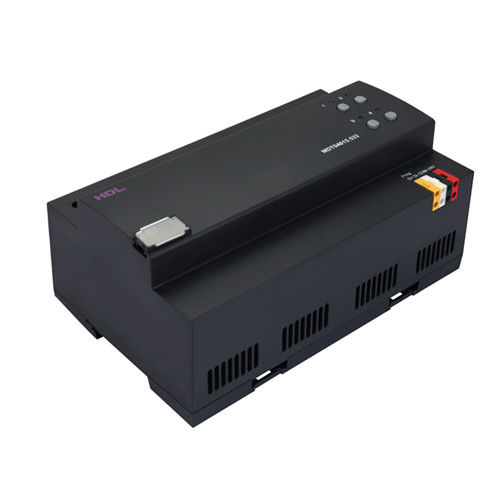

4CH 1.5A MOSFET Dimming Actuator

MOSFET Dimming Actuator is designed based on the MOSFET dimming technology, which has 3 kinds(2CH 3A / 4CH 1.5A / 6CH 1.5A) of output channels and each channel has a bypass button for manual control. MOSFET trailing edge dimming mode supported for each channel, which is applicable to dimming control of different types, for example, incandescent light, halogen light, dimmable LED light, dimmable LED driver, etc.

Model: HDL-MDT04015.532 Category:

Description

MOSFET Dimming Actuator is designed based on the MOSFET dimming technology, which has 3 kinds(2CH 3A / 4CH 1.5A / 6CH 1.5A) of output channels and each channel has a bypass button for manual control. MOSFET trailing edge dimming mode supported for each channel, which is applicable to dimming control of different types, for example, incandescent light, halogen light, dimmable LED light, dimmable LED driver, etc.

Đặc trưng

  • LED status indicator and bypass button for each output channel are available.
  • Up to 2 separate zones, and up to 12 scenes can be set for each zone.
  • Up to 6 sequences, and 12 steps for each sequence
  • Low Threshold, High Threshold, Maximum Threshold are all available for each channel.
  • Selected scene or scene before power off can be activated automatically when the device restarts.
  • Trailing edge dimming mode is supported for each channel.
  • Short circuit protection, instant overvoltage protection and overheat protection
  • 4 dimming curves
  • Online update via HDL Buspro Setup Tool

Thông số

Basic Parameters

Working voltage 15~30V DC
Working current 35mA/24V DC
Input voltage 100V/240V AC (50/60Hz)
Output channel 4CH, 1.5A/CH
Total output current 6A Max.
Dimming mode Leading edge, trailing edge
Dimming curves Linear, 1.5 exponent, 2.0 exponent, 3.0 exponent, custom

External Environment

Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%

Specifications

Dimensions 144mm×90mm×64mm
Net weight 409g
Housing material Nylon, PC
Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
