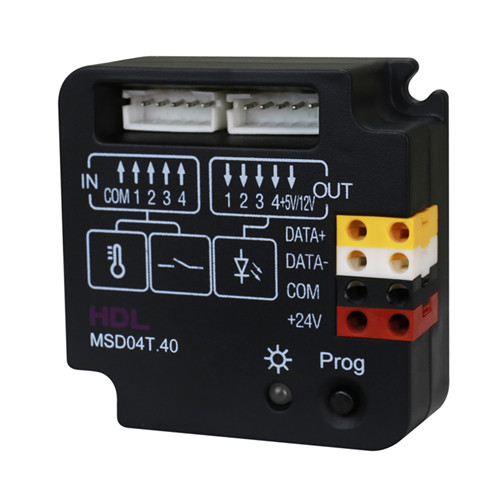

4-Zone Dry Contact Module with Temp. Sensor

4-Zone Dry Contact Module with Temp. Sensor has 4 input channels and 4 output channels. Input signal supports dry contact, temperature signal and dry contact status display via LED indicators.

Model: HDL-MSD04T.40 Category:

Description

4-Zone Dry Contact Module with Temp. Sensor has 4 input channels and 4 output channels. Input signal supports dry contact, temperature signal and dry contact status display via LED indicators.

Đặc trưng

  • 4-channel dry contact input with vandal proof.
  • Supports temperature input
  • Status display via LED indicators
  • Supported switch type: Mechanical switch, Single on, Single off, Single on/off, Combination on, Combination off, Combination on/off, Multi-function, Parallel switch, Temperature sensor.
  • Supported switch mode: Switch mode, dim up/down, dim up, dim down.
  • Control target types: Scene, Sequence, Universal witch, Single channel lighting control, Broadcast scene, Broadcast channel, Curtain control, Panel control, GPRS control, Security module, Music player etc.
  • Security function (security module required)
  • Temperature alarm: when the temperature exceeds preset range/value, alarm will be triggered.
  • Online update via HDL Buspro.

Thông số

Basic Parameters

Working voltage 12~30V DC
Working current 10mA/24V DC
Communication HDL Buspro

External Environment

Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%

Specifications

Dimensions 45mm×45mm×16mm
Net weight 57g
Housing material ABS
Installation
Fix with screws
Protection rating (Compliant with EN 60529) IP20
