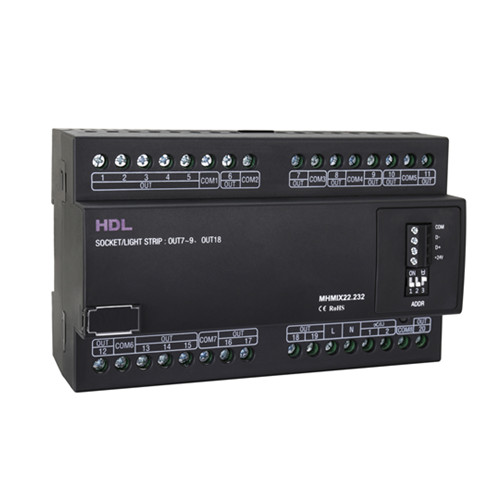

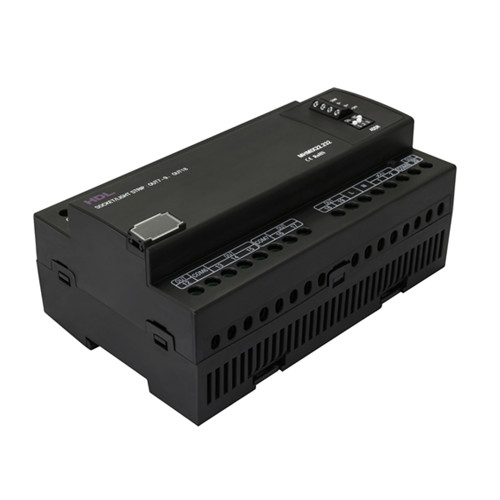

22CH Hotel Room Mix Control Module

22CH Hotel Room Mix Control Module is a multifunction control module. It supports relay control output and MOSFET dimming output. In conjunction with HDL Hotel Room Management System, the module can control hotel rooms, home appliances, lights (including incandescent light, dimmable LED light, low-voltage halogen light, etc.) and curtains.

Model: HDL-MHMIX22.232 Category:

Description

22CH Hotel Room Mix Control Module is a multifunction control module. It supports relay control output and MOSFET dimming output. In conjunction with HDL Hotel Room Management System, the module can control hotel rooms, home appliances, lights (including incandescent light, dimmable LED light, low-voltage halogen light, etc.) and curtains.

Đặc trưng

  • The module has 20 relay channels and 2 MOSFET dimming channels.
  • The relay can control the switch of the connected channels.
  • The MOSFET dimming channels can control lights (including incandescent light, dimmable LED light, low-voltage halogen light, etc.) for trailing dimming.
  • The MOSFET dimming channels support short circuit protection and overheat protection.
  • The ID address of the module can be configured easily via dial code control, it also can be freely configured via HDL Hotel Room Management System.
  • Inner Bus communication is adopted. In conjunction with HDL Hotel Room Management System, the module works in some more complicated scenes as a channel expansion module of HDL hotel host.

Thông số

Basic Parameters

Working voltage 15~30V DC
Working current 180mA/24V DC
Control channel: 16CH/5A/AC100~240V
Relay: (CH1~6, CH10~17, CH19~20), 4CH/10A/AC100~240V
Relay: (CH7~9, CH18), 2CH/0.5A MOSFET dimming, (CH21~22)
Input voltage: AC100~240V(50/60Hz)
Dimming control channel Dimming mode: MOSFET trailing edge
Dimming curve: Linear

External Environment

Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%

Specifications

Dimensions 144mm×90mm×64mm
Net weight 572g
Housing material Nylon, PC
Installation
35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
