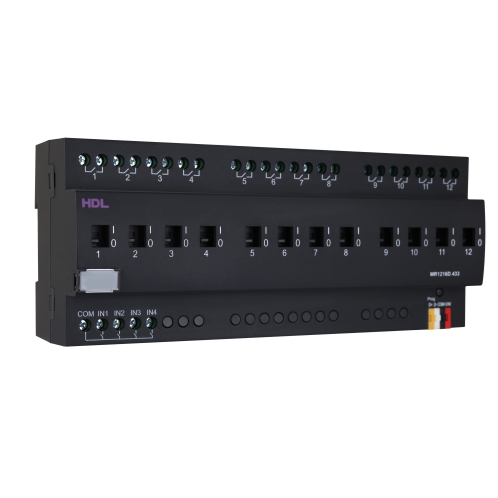

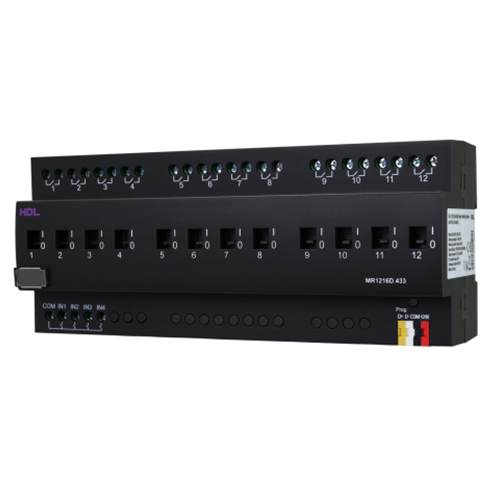

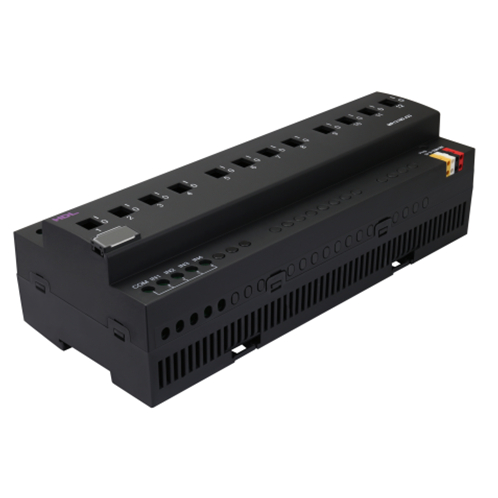

12CH 16A High Power Switch Actuator (with Dry Contact)

12CH 16A High Power Switch Actuator (with Dry Contact) has 12 channels(16A for each channel) and 50A magnetic latching relay. With low power consumption and long lifetime, the module has manual control switches and supports scene and sequence control.

Model: HDL-MR1216D.433 Category:

Description

12CH 16A High Power Switch Actuator (with Dry Contact) has 12 channels(16A for each channel) and 50A magnetic latching relay. With low power consumption and long lifetime, the module has manual control switches and supports scene and sequence control.

Đặc trưng

  • 12-channel relay output unit
  • 4 dry contact channels
  • Scene control and sequence control
  • Up to 12 separate zones
  • Up to13 scenes for each zone, and 12 of which are available for editing, scene running time up to 60 minutes
  • 2 sequences for each zone, up to 12 steps for each sequence
  • Light protection delay for each channel (0-60 minutes)
  • Mass turn-on delay for each channel(0-25 seconds)
  • Manual switch for each channel
  • Stair lamp function of the channel settable
  • Selected scene or scene before power off automatically activated when device restarts
  • HDL Buspro communication
  • Supports online upgrade

Thông số

Basic Parameters

Working voltage： 24~30V DC
Working current： 40mA/24V DC
Input voltage： 120V/240V AC (50/60Hz)
Output channel：HDL-MR1216D.433: 12CH, 16A/CH
Dry contact input：HDL-MR1216D.433: 4CH
Relay ：50A Magnetic latching relay
Maximum current output of each channel ：16A
Electronic life time of relay ：>60000 (Resistive load)
Protection ：Connect a breaker to each channel

External Environment

Working temperature： -5℃~45℃
Working relative humidity： ≤90%
Storage temperature： -20℃~60℃
Storage relative humidity： ≤93%

Specifications

Dimensions：HDL-MR1216D.433: 216mm×90mm×64mm
Net weight：HDL-MR1216D.433: 722g
Housing material ：Nylon, PC

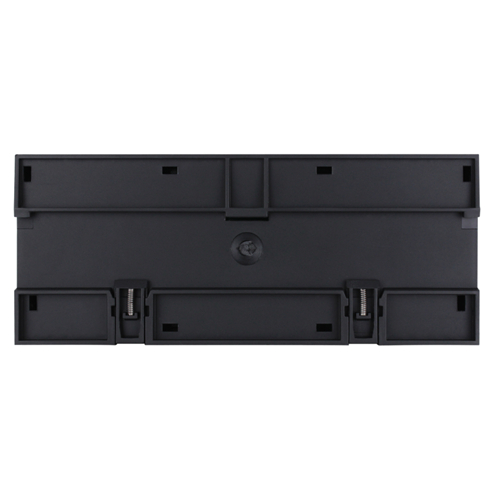

Installation：35mm DIN rail installation
Protection rating (Compliant with EN 60529) ：IP20
