Description
Power Interface-With 3CH 10A Relay is a standard panel power interface with relay channels. The power interface has an independent device ID address, including 3 10A relay channels, and adopts HDL Buspro protocol 485 Bus communication.

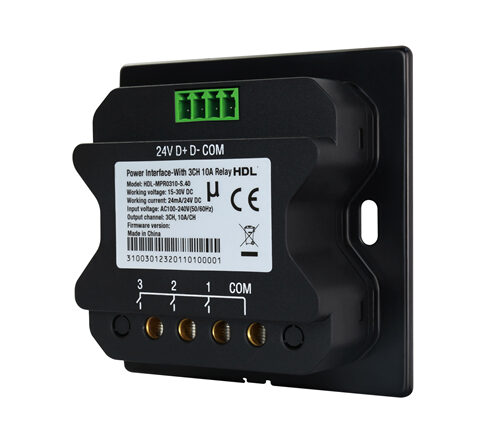

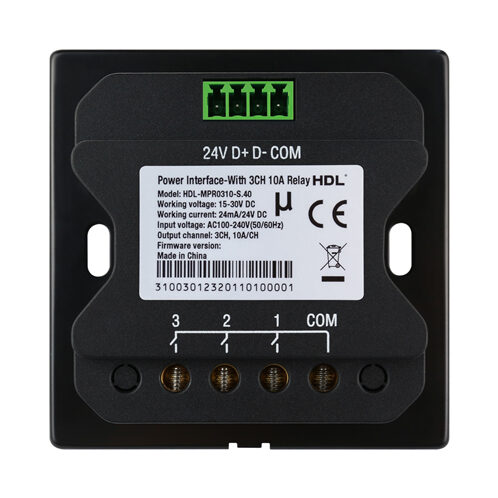

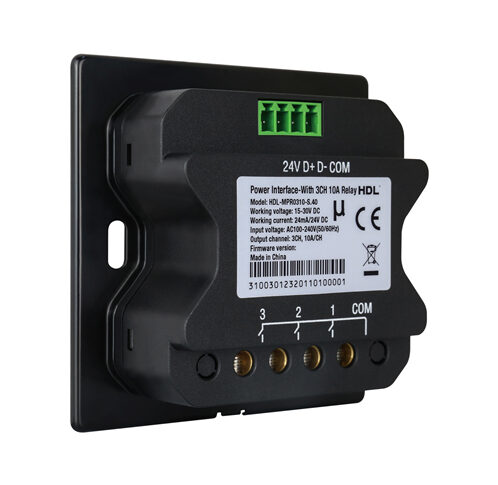

Power Interface-With 3CH 10A Relay
Power Interface-With 3CH 10A Relay is a standard panel power interface with relay channels. The power interface has an independent device ID address, including 3 10A relay channels, and adopts HDL Buspro protocol 485 Bus communication.
Đặc trưng
Its main functions include:
- With 3-channel 10A magnetic latching relay channel

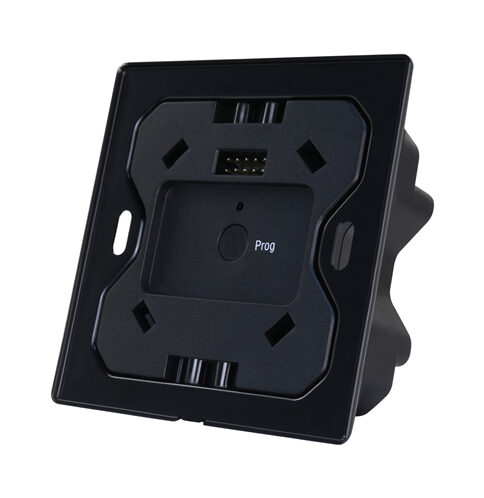

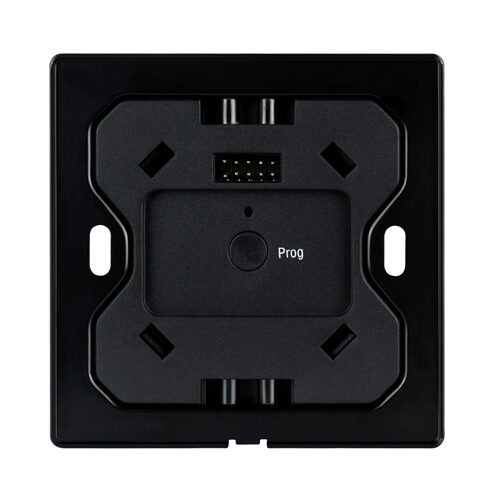

- With independent programming button and programming indicator
- Short press the programming button to realize all relay channels on/off
- Provide power and communication interface for HDL standard panel
Thông số
Basic Parameters
Working voltage: 15-30V DC
Working current: 24mA/24V DC
Input voltage: AC100-240V (50/60Hz)
Output channel: HDL-MPR0310-S.40: 3CH, 10A/CH
Communication: HDL Buspro
Cable diameter of Buspro terminal: 0.6-0.8mm
External Environment
Working temperature: -5℃~45℃
Working relative humidity: ≤90%
Storage temperature: -20℃~60℃
Storage relative humidity: ≤93%
Specifications

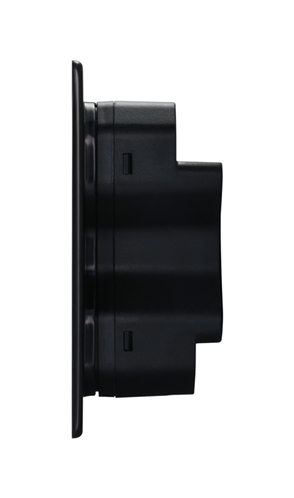

Dimensions: 80mm×80mm×31.9mm
Net weight:106g
Housing material: Iron, PC
Installation: Wall box
Protection rating (Compliant with EN 60529): IP20
