KNX 4-Zone Dry Contact Module

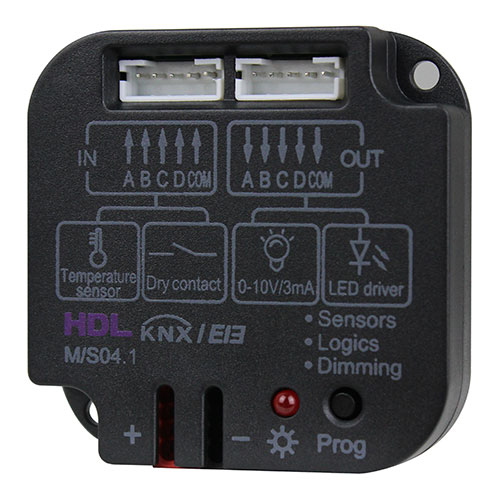

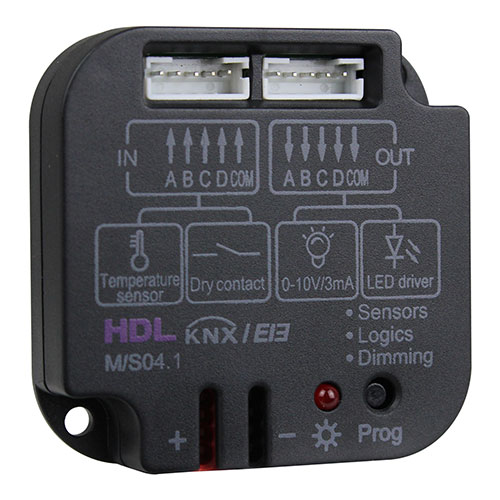

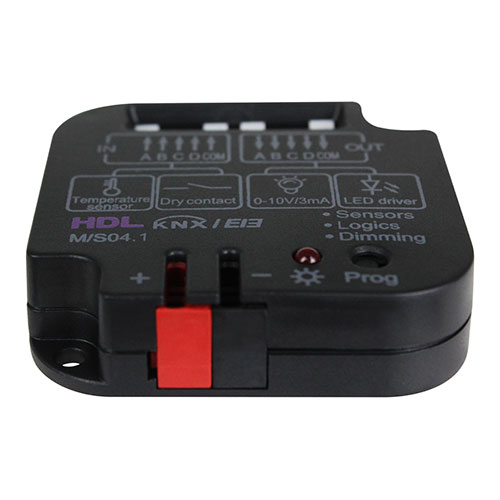

KNX 4-Zone Dry Contact Module belongs to HDL KNX/EIB series, with four signal input channels and four signal output channels. The signal input channels can receive the signal from the temperature sensor and the dry contact type trigger signal, while output channels can output 0-10V dimming signal, or be used for channel LED state drive.

Model: M/S04.1 Category:

Description

KNX 4-Zone Dry Contact Module belongs to HDL KNX/EIB series, with four signal input channels and four signal output channels. The signal input channels can receive the signal from the temperature sensor and the dry contact type trigger signal, while output channels can output 0-10V dimming signal, or be used for channel LED state drive.

Đặc trưng

  • Dry contact input and temperature sensor input are available
  • 0-10V dimming output signal enable to control 0-10v devices, such as LED lights
  • Supports 4CH dry contact input and 4CH LED state output
  • 3 working modes: Sensor control (Dry contact sensor, temperature sensor) Logic controlDimming control (0-10V)
  • Control types: Switch control, Dimming control, Shutter control, Flexible control, Scene control, Sequence control, Percentage control, Threshold control, String control, Forced control, PMW output, Counter control, Combination control, LED status indication

Thông số

Basic Parameters

Working voltage 21~30V DC
Working current 5mA/30V DC
Output voltage 0~10V DC
DC0~10V output current 3mA
Input sensor Switch/temperature sensor
Temperature sensor TTS/APR1.0
Communication KNX/EIB
Cable diameter of KNX terminal 0.6 – 0.8mm

External Environment

Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%

Specifications

Dimensions 50mm×50mm×13mm
Net weight 24g
Housing material Flame-retardant ABS
Installation Switch box installation
Protection rating (Compliant with EN 60529) IP20
