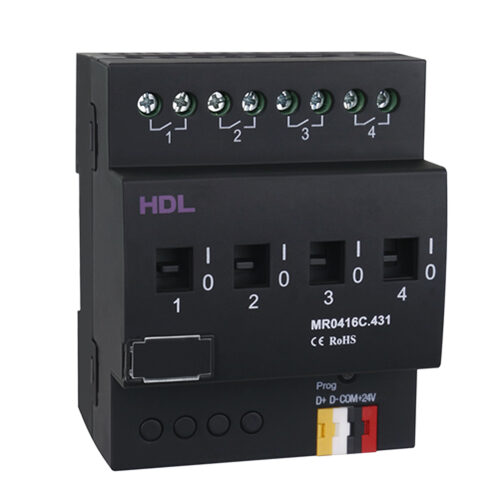

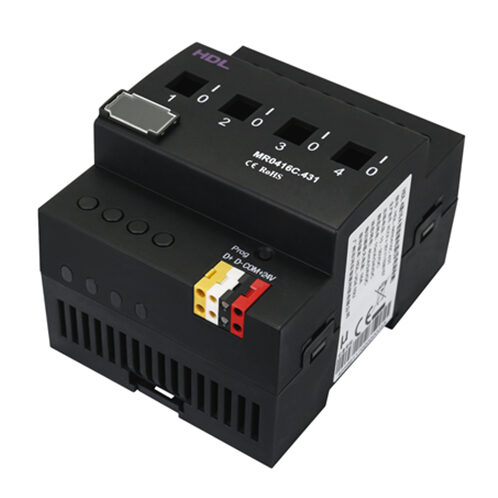

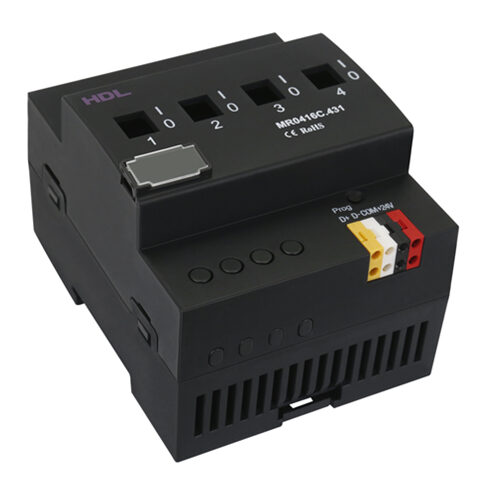

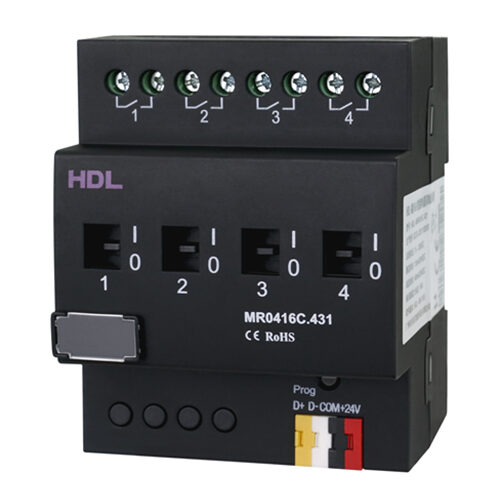

4CH 16A High Power Switch Actuator with Current Detection

4CH 16A High Power Switch Actuator with Current Detection has 4 channels(16A for each channel) and 50A magnetic latching relay. With low power consumption and long lifetime, the module has manual control switches and supports scene and sequence control.

Model: HDL-MR0416C.431 Category:

Description

4CH 16A High Power Switch Actuator with Current Detection has 4 channels(16A for each channel) and 50A magnetic latching relay. With low power consumption and long lifetime, the module has manual control switches and supports scene and sequence control.

Đặc trưng

  • 4-channel relay output unit
  • Scene control and sequence control
  • Up to 4 separate zones
  • 8 scenes for each zone, scene running time up to 60 minutes
  • 2 sequences for each zone, up to 4 steps for each sequence
  • Light protection delay for each channel (0-60 minutes)
  • Mass turn-on delay for each channel(0-25 seconds)
  • Manual switch for each channel
  • Stair lamp function of the channel settable
  • Channel current, used time of load and alarm status of each channel can be detected.
  • Selected scene or scene before power off automatically activated when device restarts
  • Specified scene or no operation for options when power off
  • HDL Buspro communication
  • Supports online upgrade

Thông số

Basic Parameters

Working voltage: 24~30V DC
Working current: 35mA/24V DC
Input voltage:120V/240V AC (50/60Hz)
Output channel: 4CH/16A
Relay: 50A Magnetic latching relay
Maximum current of each channel:16A
Electronic life time of relay: >60000 (Resistance load)
Protection: Connect a breaker in each channel

External Environment

Working temperature: -5℃~45℃
Working relative humidity: ≤90%
Storage temperature: -20℃~60℃
Storage relative humidity: ≤93%

Specifications

Dimensions :72mm×90mm×64mm
Net weight :248g
Housing material :Nylon, PC

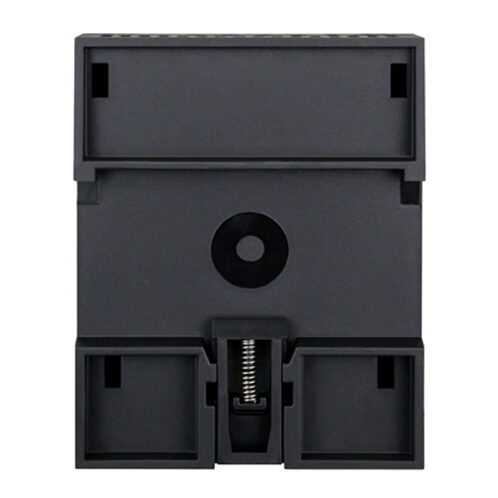

Installation:35mm DIN rail installation
Protection rating (Compliant with EN 60529) :IP20

Recommended Load Types and Power

240V, 16A, Resistive, 100,000 cycles, 40°C;
240V, 16FLA/96LRA, Motor, 30,000 cycles, 40°C;
240V, 16A, Standard Ballast, 30,000 cycles, 40°C;
240V, 16A, Electronic Ballast, 6,000 cycles, 40°C;
120V, 16FLA/96LRA, Motor, 30,000 cycles, 40°C;
120V, 16A, Electronic Ballast, 6,000 cycles, 40°C;
120V, 16A, Standard Ballast, 30,000 cycles, 40°C;
