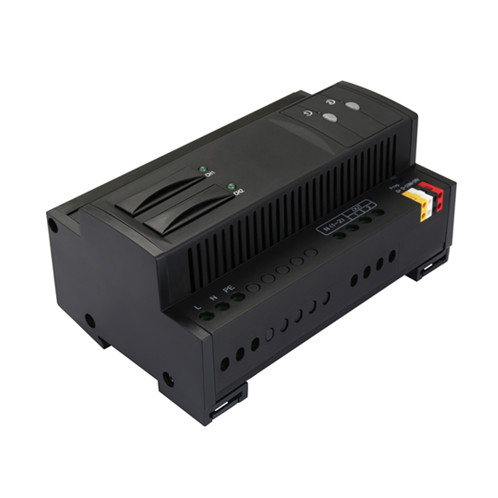

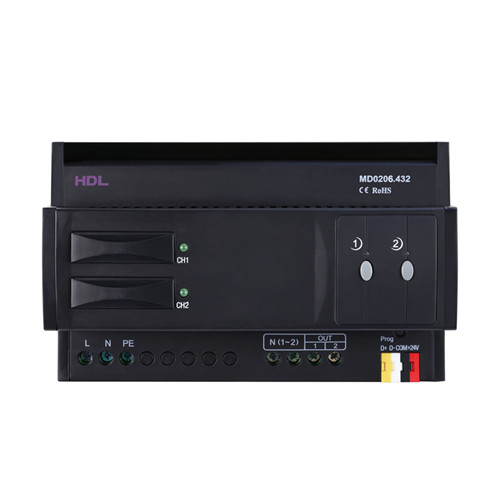

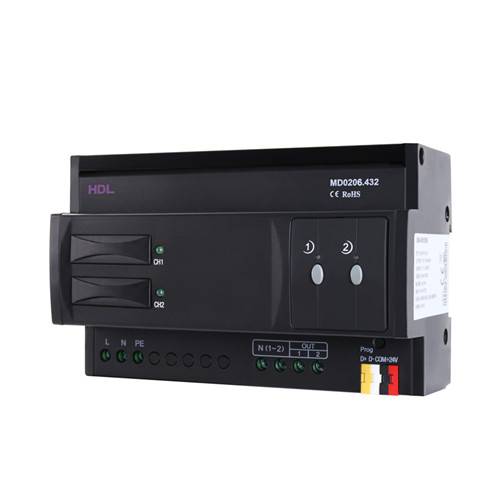

2CH 6A Leading Edge Dimming Actuator

HDL-MD0206.432 2-channel 6A Dimmer, supports AC220V and AC110V power input. It has 2 output channels, each channel has a bypass button for manual control. There is fuse protection for each channel, the Dimmer will be protected in case of short circuit. LED indicator will show you which channel has short circuit

Model: HDL-MD0206.432 Category:

Description

HDL-MD0206.432 2-channel 6A Dimmer, supports AC220V and AC110V power input. It has 2 output channels, each channel has a bypass button for manual control. There is fuse protection for each channel, the Dimmer will be protected in case of short circuit. LED indicator will show you which channel has short circuit

Đặc trưng

  • Up to 2 separate areas; Max 12 scenes for each area
  • Up to 6 sequences and each sequence has 12 steps
  • 4 Dimming curves, the dimming accuracy is 512 step
  • Low, high, max threshold for each channel
  • Bypass button for manual control available for each channel
  • You can select specified scene or scene before power off when the device restarts
  • Short circuit and over heat protection
  • Max 6A of each channel, 12A fuse of each channel for protection (aR type)
  • Support HDL Buspro online upgrading

Thông số

Electrical Parameters:

AC power input AC110V/AC220V, 50-60Hz
Working power DC15~30V
Power consumption 28mA/DC24V
Output channel 2CH/6A
Maximum output channel current in total 10A
Fuse 10A
TRIAC 25A TRIAC, Minimum Load 40w
Dimming curves
Linear, 1.5 exponent, 2.0 exponent, 3.0 exponent

Environmental Conditions:

Working temperature -5℃~45℃
Working relative humidity Up to 90%
Storage temperature -20℃~+60℃
Storage relative humidity Up to 93%
Approved: CE, RoHS

Product Information:

Dimensions 144×90×66 (mm)
Weight 602.5(g)
Housing material Nylon, PC
Installation 35mm DIN rail installation
Protection degree IP20
Power cable: 2.5mm2 ~4mm2(AC in)
Cable
Load cable:1.5mm2 ~2.5mm2
Installation Position Distribution box (DB )
