Description
Tile Series Power Interface works in conjunction with Buspro Tile Series panels and provides working voltage and communication signals to the panel.

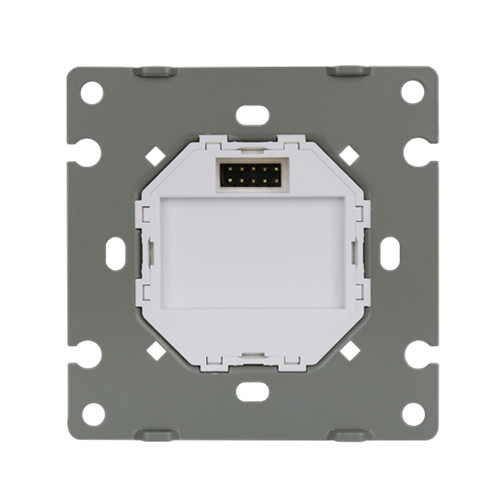

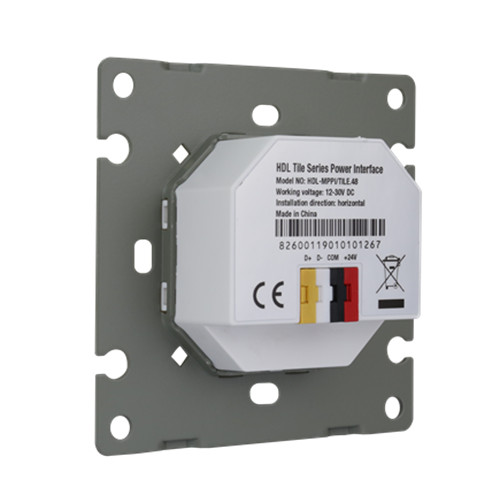

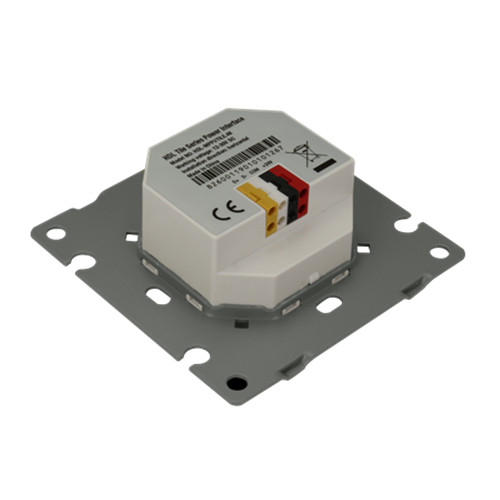

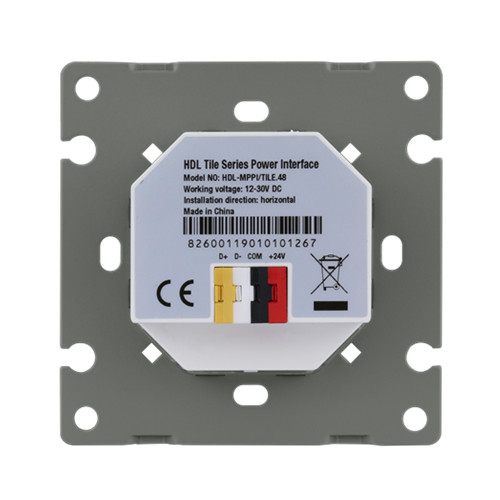

Tile Series Power Interface
Tile Series Power Interface works in conjunction with Buspro Tile Series panels and provides working voltage and communication signals to the panel.
Đặc trưng
- Provides working voltage to panel.
- Provides communication signals to panel.
Thông số
Basic Parameters
Working voltage 12~30V DC
Communication HDL Buspro
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 81.4×81.4×27 (mm)
Net weight 69g
Housing material Steel, ABS
Installation Wall box
Protection rating (Compliant with EN 60529) IP20
