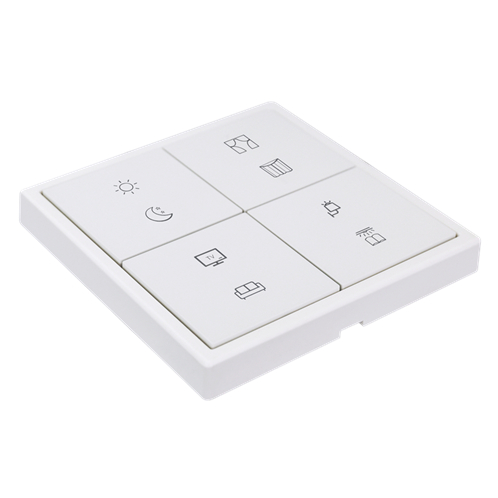

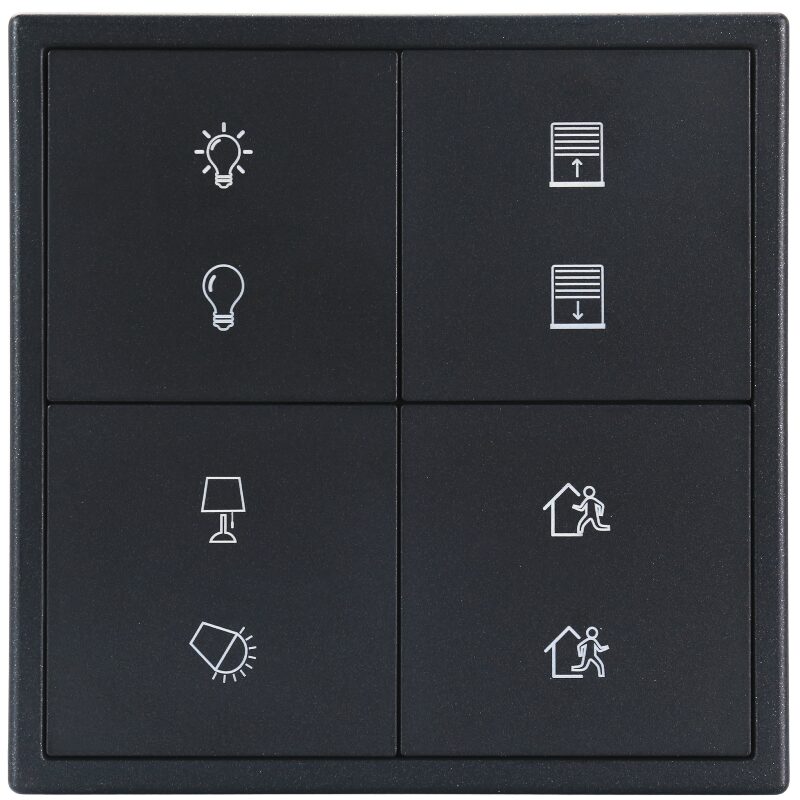

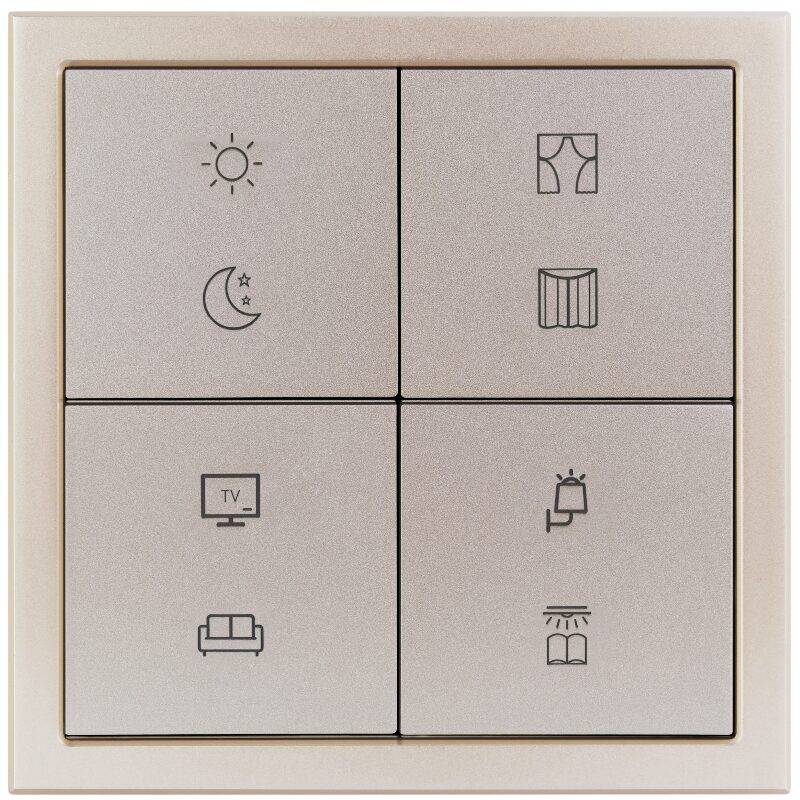

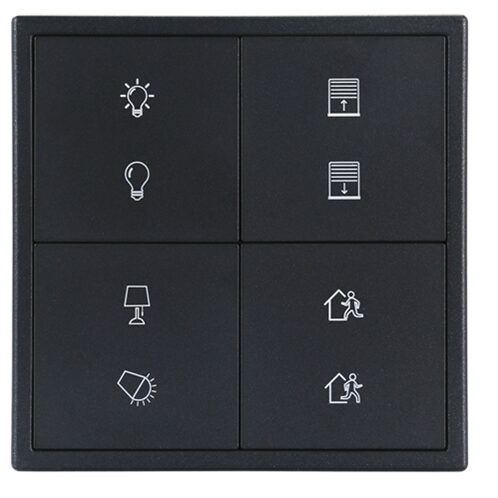

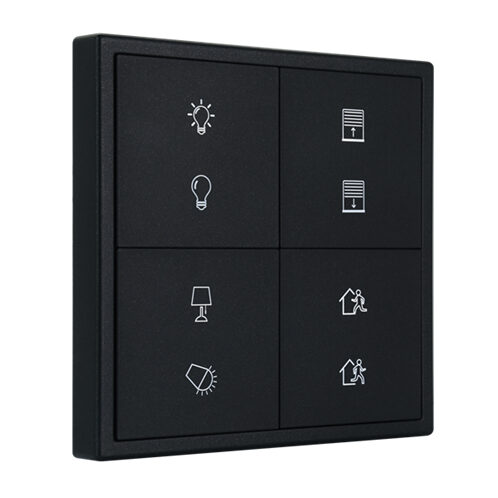

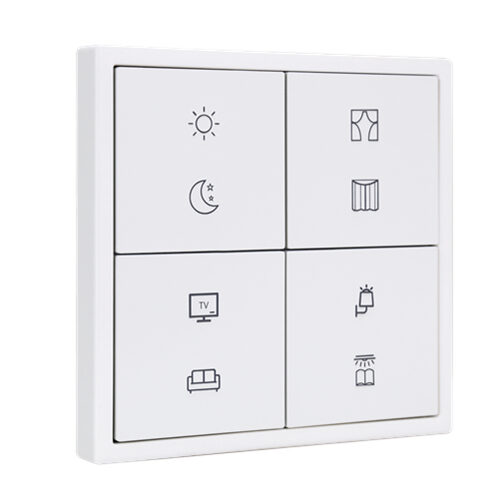

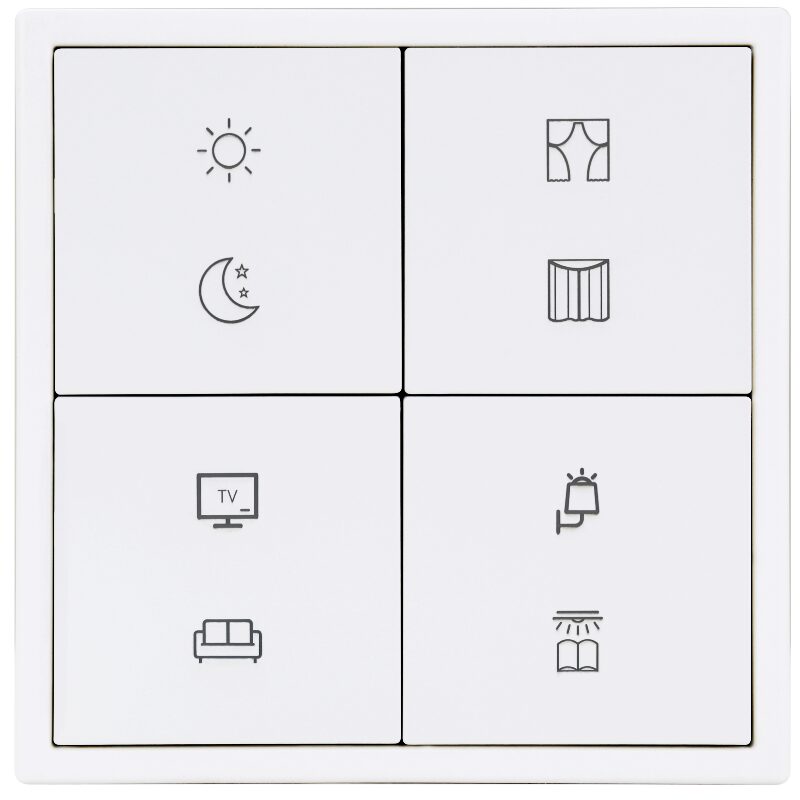

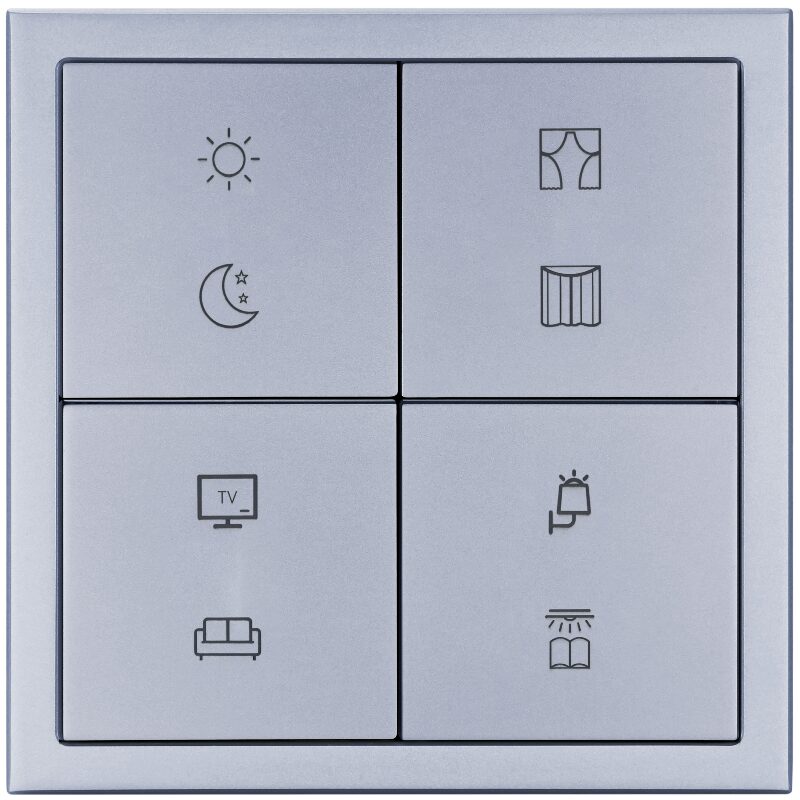

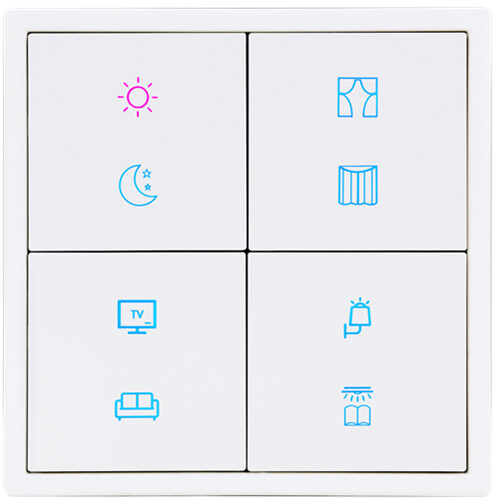

Tile Series 4 Buttons Panel B

Tile series Button Panel 2.0 contains 1/2/4-button panels, both plastic and metal versions. Icons and text of each button supports laser labelling. With built-in RGB backlight for each pushbutton, the color and brightness level can be set by HDL Buspro Setup Tool or manually set on the panel. The panels support controls of lighting, curtains, scenes, music, etc.

Model: HDL-MP4B-A/TILE.48 Category:

Description

Tile series Button Panel 2.0 contains 1/2/4-button panels, both plastic and metal versions. Icons and text of each button supports laser labelling. With built-in RGB backlight for each pushbutton, the color and brightness level can be set by HDL Buspro Setup Tool or manually set on the panel. The panels support controls of lighting, curtains, scenes, music, etc.

Đặc trưng

  • Built-in temperature sensor
  • Built-in proximity sensor (maximum sensing distance: 20~30cm)
  • The 1 Button Panel A/B in metal version (M/PT1RA.1, M/PT1RB.1) do not support proximity sensing function.
  • Icons and text of each button support laser labelling.
  • Adjustable backlight brightness level via HDL Buspro Setup Tool or manual setting on the panel.
  • Button modes: Single on/off, Single on, Single off, Combination on, Combination off, Combination on/off, Double click/single on/off, Double click/combination on/off, Momentary, Short/long press, Short press/long momentary.
  • Control types: Scene, Sequence, Timer Switch, Universal Switch, Single Channel Lighting Control,
  • Broadcast Scene, Broadcast Channel, Curtain Switch, GPRS Control, Panel Control, Security Module, Music Control, General Control, etc.
  • Button lock function.
  • Online update via HDL Buspro Setup Tool.

Thông số

Basic Parameters

Working voltage: 12~30V DC
Working current: HDL-MP1B/TILE.48: 9.5mA/24V DC
HDL-MP2S/TILE.48: 13.4mA/24V DC
HDL-MP2B/TILE.48: 13.4mA/24V DC
HDL-MP4S/TILE.48: 13.5mA/24V DC
HDL-MP4B/TILE.48: 13.5mA/24V DC
HDL-MP4B-A/TILE.48: 13.5mA/24V DC
Communication: HDL Buspro
Cable diameter of Buspro terminal:0.6-0.8mm

External Environment

Working temperature :-5℃~45℃
Working relative humidity :≤90%
Storage temperature :-20℃~60℃
Storage relative humidity :≤93%

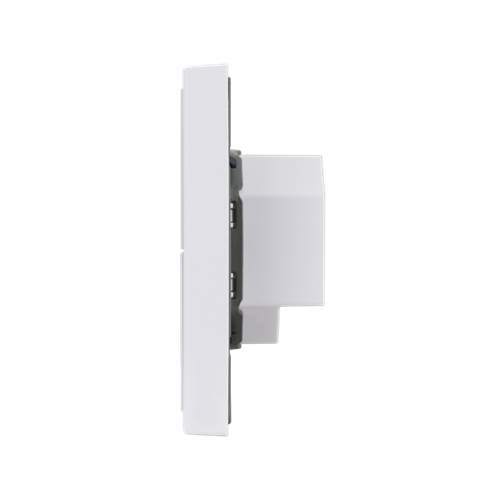

Specifications

Dimensions: Plastic version: 86×86×11(mm)
Metal version: 90×90×11(mm)
Net weight: Plastic version: 64g
Metal version: 110g
Housing material: Plastic version: Flame retardant PC
Metal version: Aluminum alloy
Installation: Wall box
Protection rating (Compliant with EN 60529) :IP20
