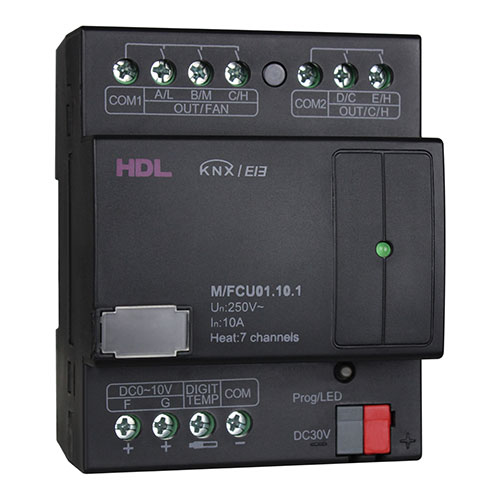

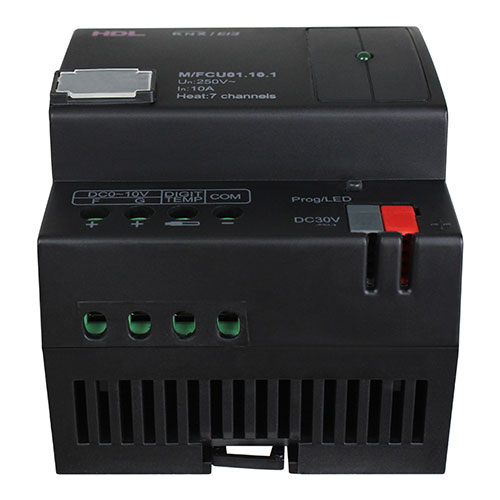

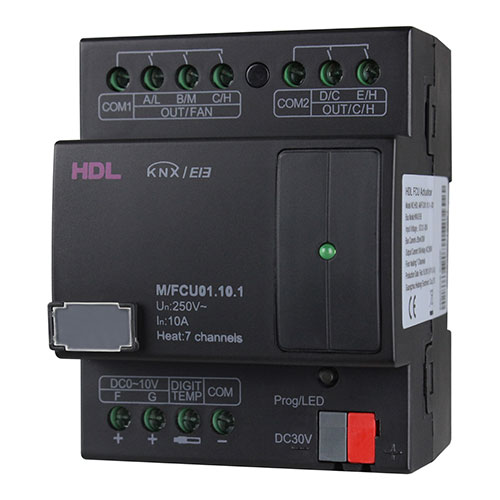

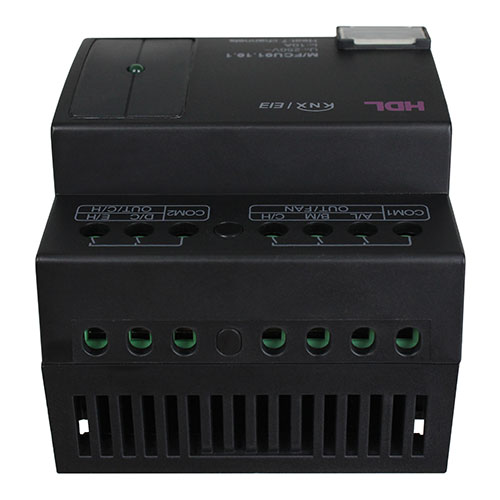

KNX HVAC Module

KNX HVAC Module belongs to HDL KNX/EIB series, and it supports control of heating, cooling, high/medium/low fan speed. 7 independent floor heating control channels can be set. In conjunction with digital temperature sensor, the actuator achieves precise temperature control. In addition, 5 switch output channels and 2 DC0-10V output channels can be set for staircase lights and other requirements.

Model: M/FCU01.10.1 Categories: ,

Description

KNX HVAC Module belongs to HDL KNX/EIB series, and it supports control of heating, cooling, high/medium/low fan speed. 7 independent floor heating control channels can be set. In conjunction with digital temperature sensor, the actuator achieves precise temperature control. In addition, 5 switch output channels and 2 DC0-10V output channels can be set for staircase lights and other requirements.

Đặc trưng

  • 7 independent floor heating control channels
  • Up to 7 digital temperature sensors supported
  • 5 relay output channels
  • 2 DC0-10V output channels (10mA/CH)
  • Fan speeds: High, Medium, Low
  • Working modes: Heating, Cooling
  • Operation modes: Comfortable, Standby, Night, Protection
  • Main functions: Fan speed, Valve status report, Local 7 channels temperature sampling, Local temperature report, Operation time statistics, Channel status response, Power-on status recall, Power-off status saving, Staircase lights, On/Off delay, Protection delay, PWM control output
  • Active control and passive control: More flexible to work in conjunction with panels by different manufacturers. When in active control mode, this module can work in conjunction with panels without PI algorithm, for example M/DLP04.1. When in passive control mode, this module can work in conjunction with panels with algorithm, for example Siemens 5WG1.
  • Supports online update

Thông số

Basic Parameters

Working voltage：21~30V DC
Working current：20mA/30V DC
Input voltage：120V/240V AC(50/60Hz)
Communication：KNX
Detecting temperature range：-30℃~+100℃
Temperature sensor：2.5m Digital Temperature Sensor (TS/C 1.0)
Communication ：KNX
Output terminal ：Line in, line out cable for each channel 2.5-4mm2
Output channel ：5CH, 10A/CH
0-10V output：2CH, 10mA/CH
Cable diameter of KNX terminal：0.6 – 0.8mm
Electrical life time：>100000
Mechanical life time：>100000

External Environment

Working temperature：-5℃~45℃
Working relative humidity：≤90%
Storage temperature：-20℃~60℃
Storage relative humidity：≤93%

Specifications

Dimensions：90mm×72mm×64mm
Net weight ：310g
Housing material：Frame-retardant nylon

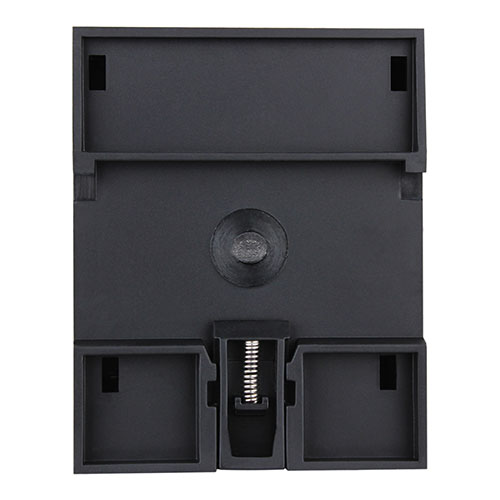

Installation：35mm DIN rail installation
Protection rating (Compliant with EN 60529) ：IP20
