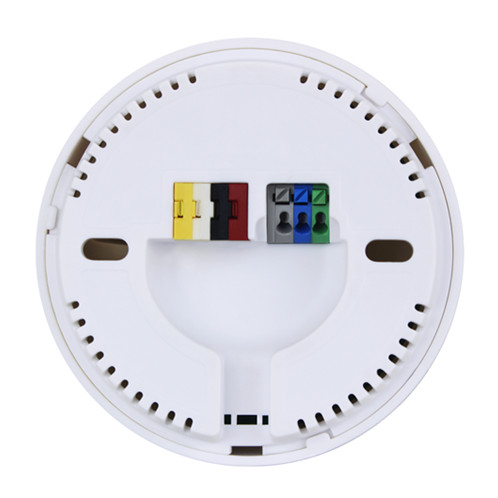

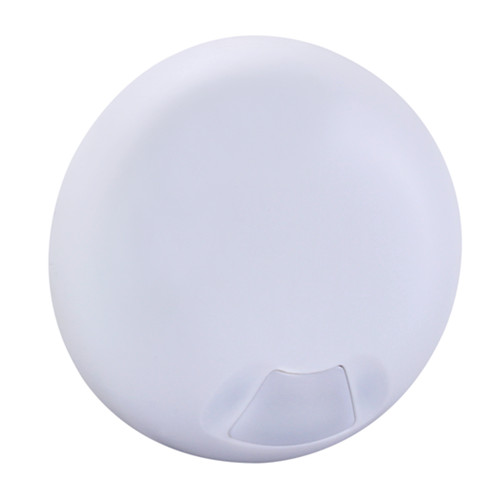

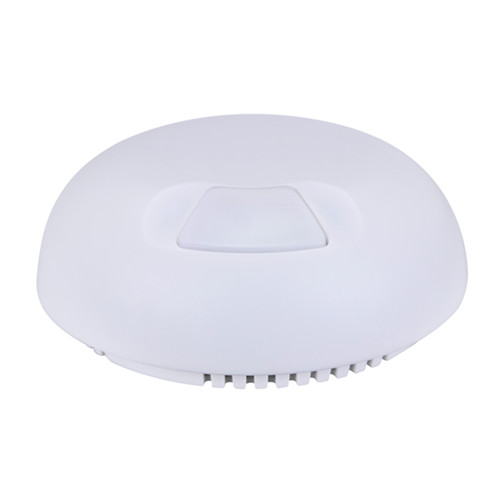

KNX Ceiling Mount Indoor Microwave Sensor

KNX Ceiling Mount Indoor Microwave Sensor contains four independent logic blocks and one combined logic block. The logic inputs include microwave sensor status, brightness value, temperature, dry contact input and external telegrams, which enables the control of lighting, curtains, thresholds, etc.

Model: M/WS05.1-D Category:

Description

KNX Ceiling Mount Indoor Microwave Sensor contains four independent logic blocks and one combined logic block. The logic inputs include microwave sensor status, brightness value, temperature, dry contact input and external telegrams, which enables the control of lighting, curtains, thresholds, etc.

Đặc trưng

  • With 2CH constant brightness control, 4 dimming values and forced operation can be set.
  • The sensor has 5 logic blocks and each block contains 10 object outputs. Dry contact and telegram locking/unlocking and delay time can be set.
  • Control types: Switch control, Absolute dimming control, Shutter control, Alarm control, Percentage control , Sequence control, Scene control, String(14 bytes) control, Threshold control, Logic combination control.
  • Logic inputs: Microwave sensor status, brightness value, temperature , dry contact input and external telegrams.
  • 2 logical relations: AND, OR
  • 2 working modes: Single mode and master / slave mode.
  • 2CH dry contact can be set as dry contact and LED status display and the operation function can be set as switch control, dimming control, scene control and percentage control.
  • The logic validity can be set by external telegram.

Thông số

Basic Parameters

Working voltage 21~30V DC
Working current 17mA/30V DC
Communication KNX
Cable diameter of KNX terminal 0.6 – 0.8mm
Microwave sensing range Φ16m (Installation height: 3m)
Temperature detection range -30°C~70°C
Brightness detection range 0~15000LUX

External Environment

Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%

Specifications

Dimensions Φ84.5×32 (mm)
Net weight 67.5g
Housing material ABS
Installation
Ceiling mount
Protection rating (Compliant with EN 60529) IP20
