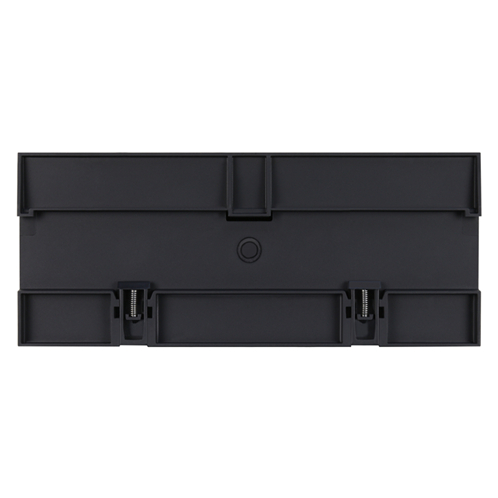

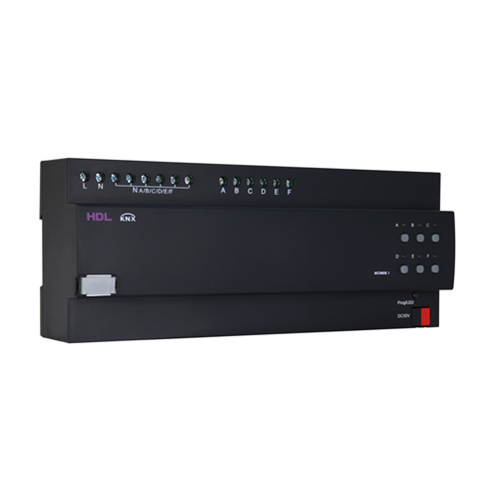

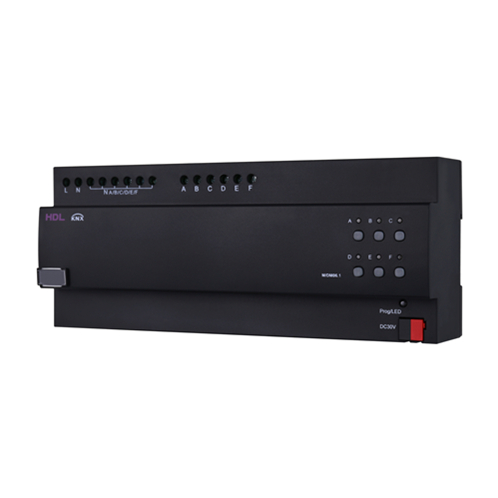

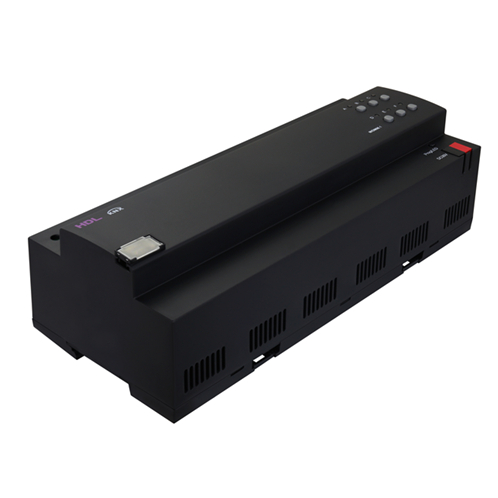

KNX 6CH 1.5A MOSFET Dimming Actuator

KNX MOSFET Dimming Actuator has 3 types (2CH 3A, 4CH 1.5A, and 6CH 1.5A) of output circuits, which supports multiple application functions. This series of dimming actuators are in full compliance with European Safety Standards and KNX standard protocol.

Model: HDL-M/DM06.1 Category:

Description

KNX MOSFET Dimming Actuator has 3 types (2CH 3A, 4CH 1.5A, and 6CH 1.5A) of output circuits, which supports multiple application functions. This series of dimming actuators are in full compliance with European Safety Standards and KNX standard protocol.

Đặc trưng

  • 3 types of output circuits: 2, 4 and 6 channels of dimming actuator.
  • Supports leading and trailing edge mode. It is recommended to adopt the leading edge dimming mode
    for inductive loads, and the trailing edge dimming mode is recommended for other load types.
  • Parallel channels can form heavy current output.
  • Manual control: Manual switching, dimming for each channel.
  • Application functions: Statistics ON time, Status response, Status recovery, Short-circuit protection,
    Overload protection, Overheat protection, Staircase light, Flashing light, Scene control, Scene dimming,
    Read temperature, Overheat alarm, Dimming higher limit control, Dimming lower limit control, Sequence control, Heating control (PWM).

Thông số

Basic Parameters

Working voltage： 21~30V DC
Working current：25mA/30V DC
Input voltage： AC100V/240V AC (50/60Hz)
Communication： KNX
Cable diameter of KNX terminal： 0.6 – 0.8mm
User control： Manual operation for each channel
Line in/Line out terminals： 2.5 – 4mm2
Output channel：HDL-M/DM06.1: 6CH, 1.5A/CH
Total output current：HDL-M/DM06.1: 9A Max.

External Environmental

Working temperature： -5℃~45℃
Working relative humidity： ≤90%
Storage temperature： -20℃~60℃
Storage relative humidity： ≤93%

Specifications

Dimensions： 90×216×64(mm)
Net weight：HDL-M/DM06.1: 521g
Housing material： Flame-retardant nylon
Installation： 35mm DIN rail installation
Protection rating (Compliant with EN 60529)： IP20
