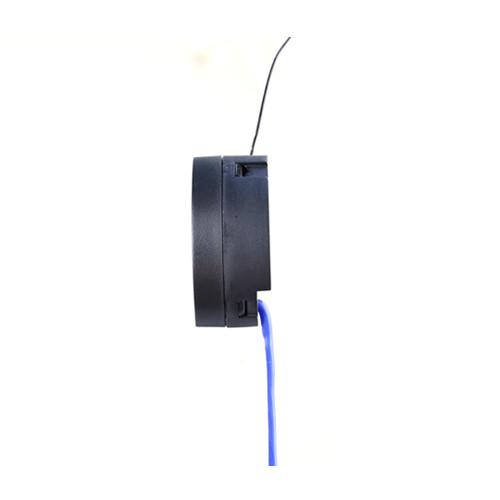

4CH Wireless 0~10V Dimming Actuator

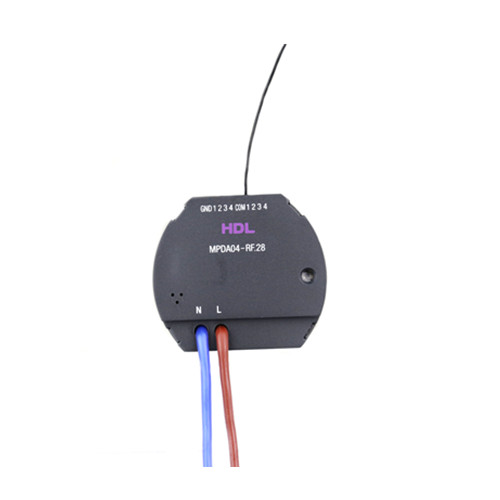

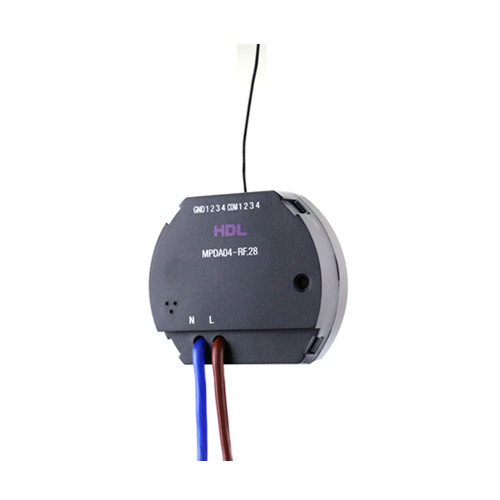

4CH Wireless 0~10V Dimming Actuator contains 4-channel 0-10V DC dimming outputs and 4-channel dry contact. With connection to electronic ballasts, the actuator can be used for LED dimming.Working with wireless gateway, the actuator can be used for controlling different targets.

Model: HDL-MPDA04-RF.28 Category:

Description

4CH Wireless 0~10V Dimming Actuator contains 4-channel 0-10V DC dimming outputs and 4-channel dry contact. With connection to electronic ballasts, the actuator can be used for LED dimming.Working with wireless gateway, the actuator can be used for controlling different targets.

Đặc trưng

  • Supports 4CH dry contact inputs and 4CH 0-10VDC dimming outputs.
  • 0-10V DC output. Available with 4 default dimming curves – 1.0, 1.5, 2.0 and 3.0. Users can also customize the dimming curves.
  • Switching modes supported by dry contact: Mechanical switch, Single on, Single off, Single on/off,Combination on, Combination off, Combination on/off, Multi-function, Parallel switch.
  • Control targets: Scene, Sequence, Universal switch, Single channel lighting control, Broadcast scene,Broadcast channel, Curtain switch, GPRS control switch, Panel control, Music control.
  • Compliant with IEEE.802.15.4 standard.
  • Supports online upgrade.
  • Supports easy programming via HDL ON APP.

Thông số

Basic Parameters

Input voltage ：AC100-240V (50/60Hz)
Power consumption ：2.7W max.
Current of each 0-10VDC output channel ：0-30mA
Communication ：Buspro Wireless
Wireless transmission power ：+10dbm
Wireless sensitivity ：-90dbm
Indoor communication distance ：≤30m
RSSI (Received Signal Strength Indication) ：>-80dbm

Frequency Allocation

WPAN (China) ：780 to 786MHz
SRD (Europe) ：864 to 870MHz
ISM (North America) ：904 to 928MHz
Default PSK ：HDL-SecurityKey0

External Environment

Working temperature ：-5℃~45℃
Working relative humidity ：≤90%
Storage temperature ：-20℃~60℃
Storage relative humidity ：≤93%

Specifications

Dimensions ：52×46.5×20 (mm)
Net weight ：33g
Housing material ：PC, ABS
Installation ：Wall box
Protection rating (Compliant with EN60529) ：IP20
Fire and neutral wire ：1.5mm2 (the module provides 15cm wire)
Load cable ：1.5mm2 (the module provides 15cm wire)
Stripping length ：5~7mm
