4CH Universal Dimming Actuator

4CH Universal Dimming Actuator is a multifunction control module, which enables the switch control between four channels of 0-10V dimming output and four channels of MOSFET dimming output. In conjunction with HDL Hotel Room Management System, the dimming actuator can control lights (including incandescent light, dimmable LED light, 0-10V dimmable fluorescent light, low-voltage halogen light, etc.)

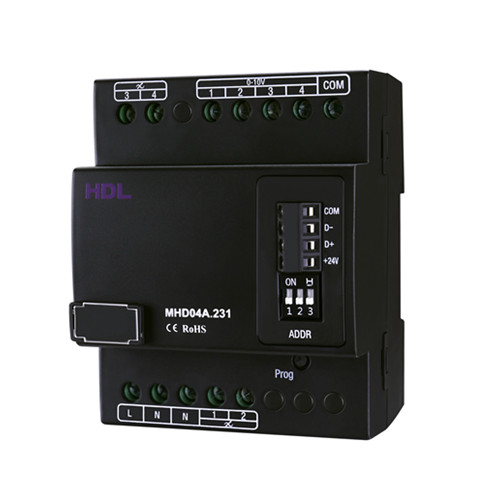

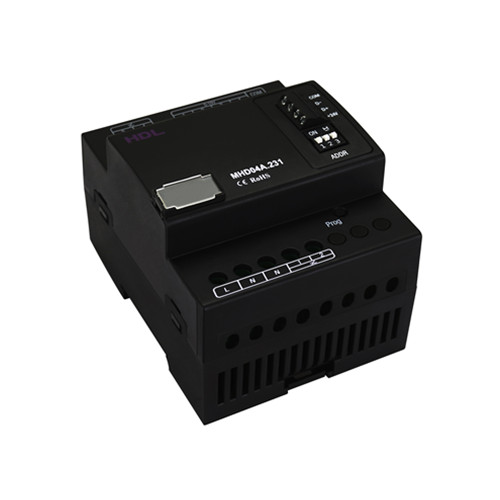

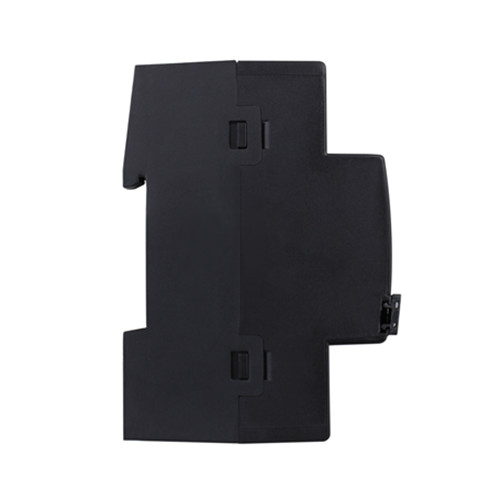

Model: MHD04A.231 Category:

Description

4CH Universal Dimming Actuator is a multifunction control module, which enables the switch control between four channels of 0-10V dimming output and four channels of MOSFET dimming output. In conjunction with HDL Hotel Room Management System, the dimming actuator can control lights (including incandescent light, dimmable LED light, 0-10V dimmable fluorescent light, low-voltage halogen light, etc.)

Đặc trưng

  • The dimming actuator enables the switch control between four channels of 0-10V dimming output and four channels of MOSFET dimming output. In conjunction with MOSFET dimming mode, the 0-10V dimming mode enables dimming control of the 0-10V dimming devices. And the MOSFET dimming mode enables trailing dimming control of the dimmable lights (including incandescent light, dimmable LED light, low-voltage halogen light, etc.)
  • Isolated 0-10V output.
  • The MOSFET dimming channels support short circuit protection and over heat protection.
  • The ID address of the dimming actuator supports simple configuration via dial code control, or full configuration via HDL Hotel Room Management System.
  • Inner Buspro communication is adopted. In conjunction with HDL Hotel Management System, the dimming actuator can work in some more complicated scenes as a channel expansion module of HDL hotel host.

Thông số

Basic Parameters

Working voltage 15~30V DC
Working current 55mA/24V DC
Input voltage AC100-240V(50/60Hz)
Output channel: Enables the switch control between four channels of 0-10V dimming output and four channels of MOSFET dimming output.
0-10V output 5mA/CH
MOSFET output channel 0.5A/CH
MOSFET dimming mode Trailing edge
MOSFET dimming curves Linear

External Environment

Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%

Specifications

Dimensions 72mm×90mm×64mm
Net weight 234g
Housing material Nylon, PC
Installation
35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
