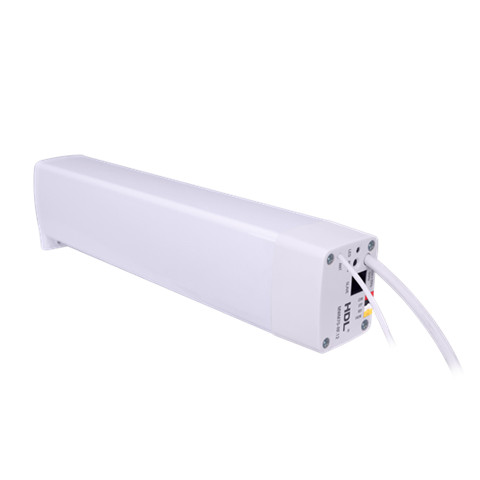

Wireless Curtain Control Motor

HDL-MWM70-RF.12 is the wireless curtain motor, which is configured by HDL-MCIP-RF02.10. It can control the curtain to open, close, stop and percentage control. And it has over load protection and over heat protection

Model: HDL-MWM70-RF.12 Category:

Description

HDL-MWM70-RF.12 is the wireless curtain motor, which is configured by HDL-MCIP-RF02.10. It can control the curtain to open, close, stop and percentage control. And it has over load protection and over heat protection

Đặc trưng

  • The distance testing of curtain.
  • Drag mode: No action, Long drag, short drag.
  • Percentage control.
  • Communication: wireless.
  • Supports online upgrading.
  • Supports easy programming.
  • Built-in new generation clutch, precise planetary. And noise level is 40dB.

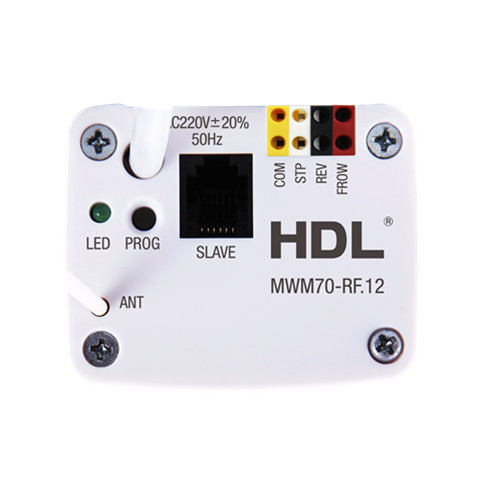

  • Dry contact switch, it can control the curtain to open, close, stop.
  • Suitable for all small to medium-scale curtain applications, linear and arched, one-and two-side opening.

Thông số

Electrical Parameters:

Rated voltage AC220V 50Hz
Voltage range AC220V±20% 50HZ
Slave interface 6P internet port
Rated power 70W
Rated torque 1.0Nm
Rated speed 112rpm
Rail belt speed 16cm/s

Communication Wireless

Wireless transmission power +10dbm
Wireless sensitivity -90dbm
Indoor communication distance 30m(barrier free)
RSSI Received Signal Strength
Indication >-80dbm
Factory frequency: Band, PSK (Suggestion: your setting should not be same as the factory setting)

Environmental Conditions:

Working temperature -5℃~45℃
Working relative humidity <95%<>
Storage temperature -20℃~+60℃
Storage relative humidity <93%<>
Approved: CE, RoHS

Product Information:

Dimensions 284×70×50（mm）
Net weight 1352g
Housing material ABS, aluminum
Installation Wall hanging
Protection rating IP41

Frequency allocation:

(China) WPAN 780MHz to 786MHz
(Europe) SRD 864MHz to 870MHz
(North America) 904MHz to 928 MHz
Default PSK HDL-SecurityKey0
