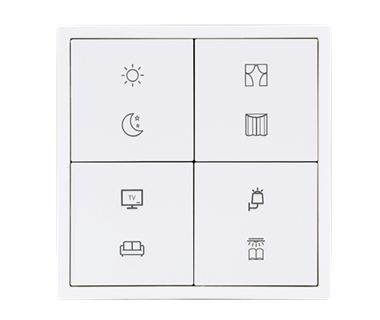

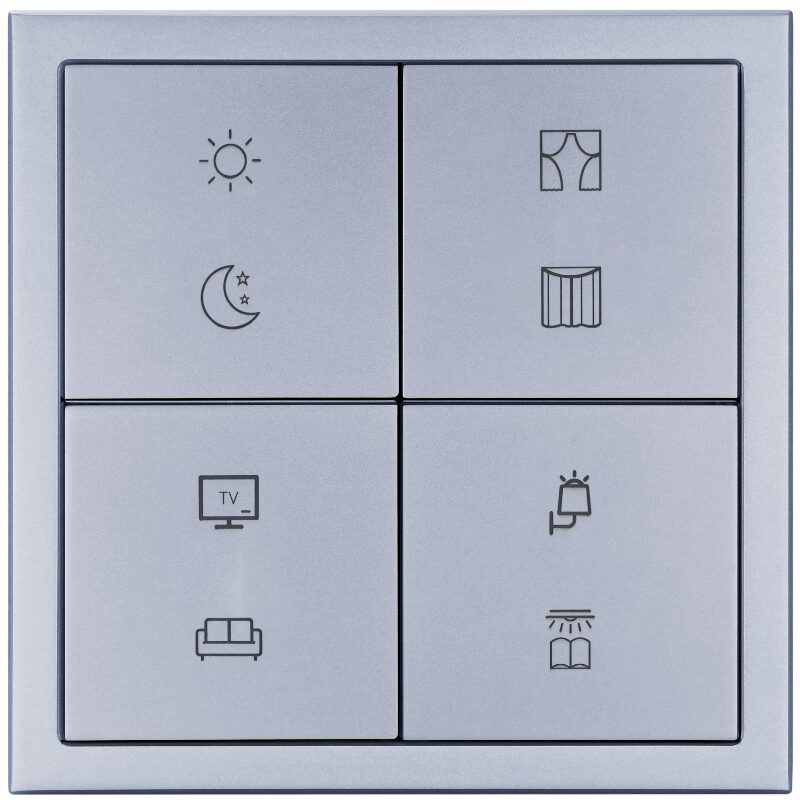

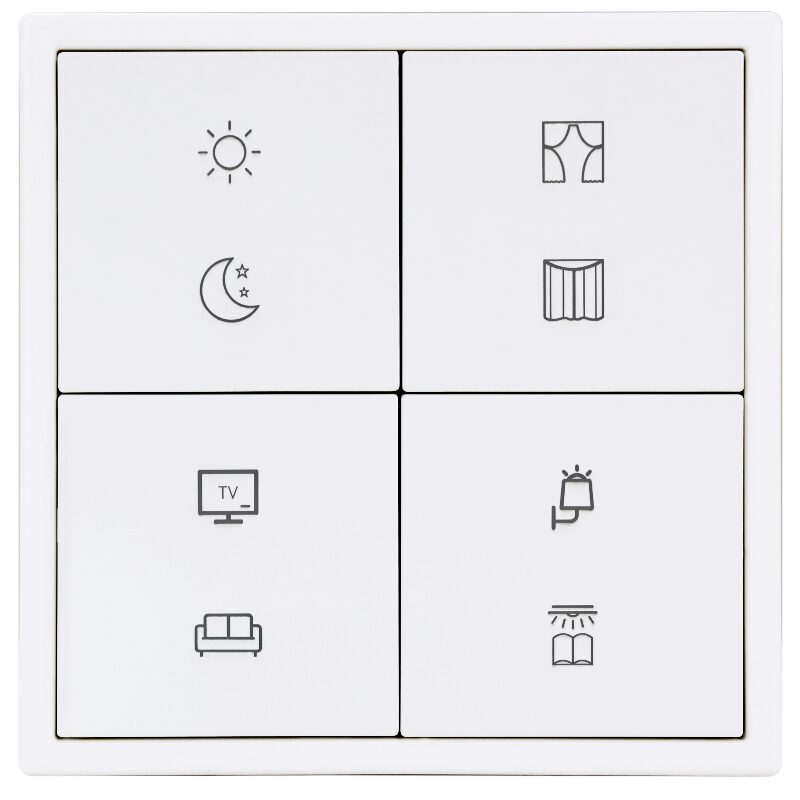

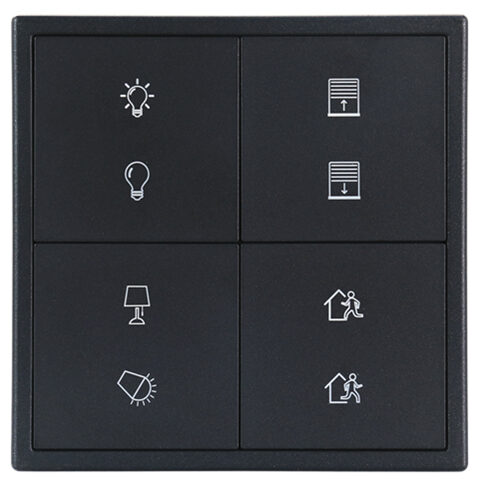

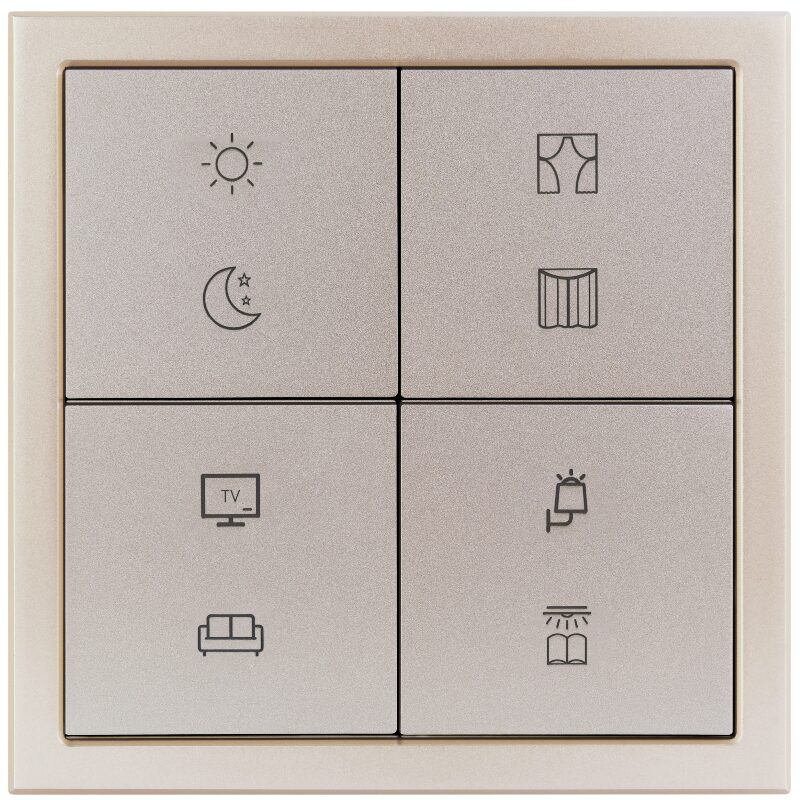

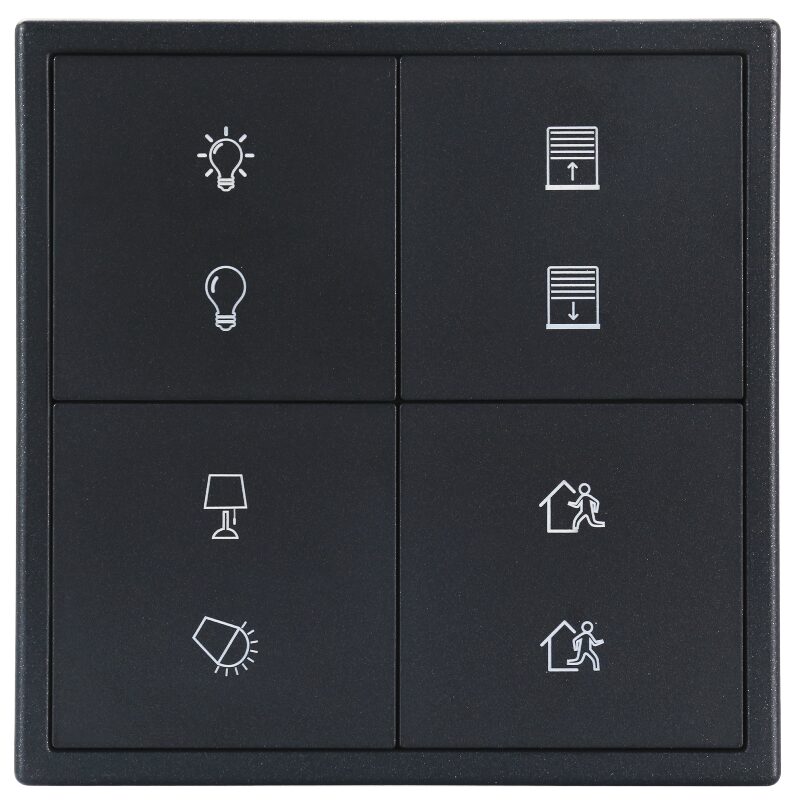

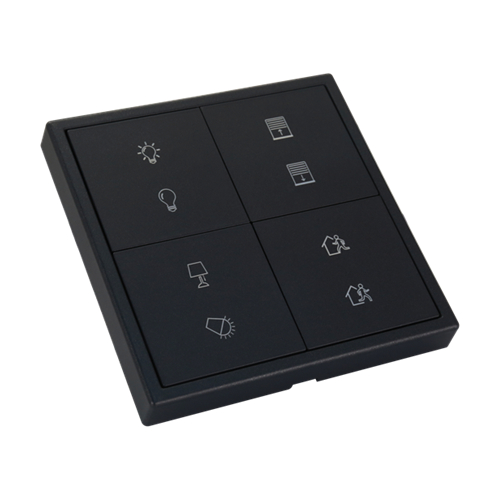

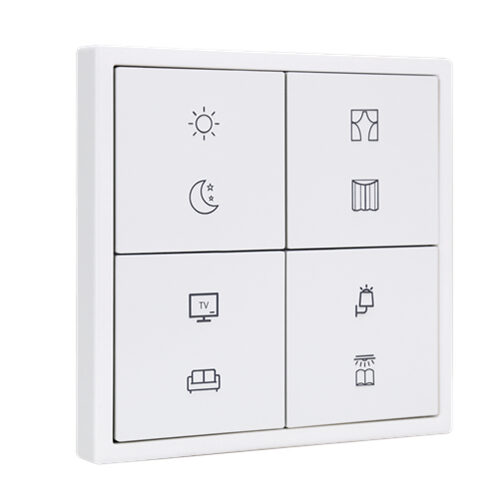

KNX Tile Series 4 Buttons Panel B

KNX Tile series Button Panel 2.0 contains 1/2/4-button panels, both plastic and metal versions. Icons and text of each button supports laser labelling. With built-in RGB backlight for each pushbutton, the color and brightness level can be set by ETS or manually set on the panel. The panels support controls of lighting, curtains, scenes, music, etc.

Model: M/PT4RB.1 Category:

Description

KNX Tile series Button Panel 2.0 contains 1/2/4-button panels, both plastic and metal versions. Icons and text of each button supports laser labelling. With built-in RGB backlight for each pushbutton, the color and brightness level can be set by ETS or manually set on the panel. The panels support controls of lighting, curtains, scenes, music, etc.

Đặc trưng

  • Built-in temperature sensor
  • Built-in proximity sensor (maximum sensing distance: 20~30cm)
  • The 1 Button Panel A/B in metal version (M/PT1RA.1, M/PT1RB.1) do not support proximity sensing function.
  • 1/2/4-button panels with built-in backlight
  • The color and brightness level of each button can be set.
  • Button modes: single mode and combined mode
  • Control modes: Switching control, Dimming control, Shutter control, Flexible control, Scene control, Sequence control, Percentage control, Threshold control, String (14 bytes) control, Alternate control, Pulse control, RGB control, Fan control, Combination control.
  • Supports online upgrade.

Thông số

Basic Parameters

Working voltage: 21~30V DC
Working current:

  • M/PT1RA.1: 7mA / 30V DC
  • M/PT1RB.1: 8.5mA / 30V DC
  • M/PT2RA.1: 9mA / 30V DC
  • M/PT2RB.1: 11.5mA / 30V DC
  • M/PT4RA.1: 12mA / 30V DC
  • M/PT4RB.1: 12mA / 30V DC

Communication: KNX
Cable diameter of KNX terminal: 0.6 – 0.8mm

External Environment

Working temperature :-5℃~45℃
Working relative humidity :≤90%
Storage temperature :-20℃~60℃
Storage relative humidity :≤93%

Specifications

Dimensions :

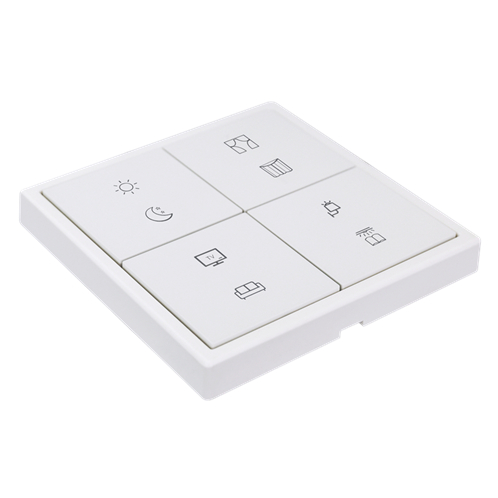

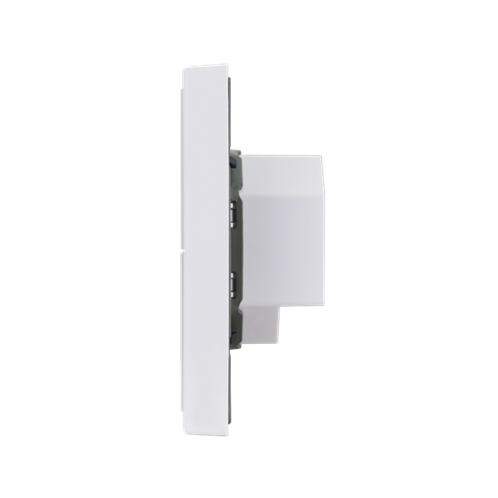

  • Plastic version: 86×86×11(mm)
  • Metal version: 90×90×11(mm)

Net weight :

  • Plastic version: 64g
  • Metal version: 110g

Housing material:

  • Plastic version: Flame retardant PC
  • Metal version: Aluminum alloy

Protection rating (Compliant with EN 60529) :IP20
