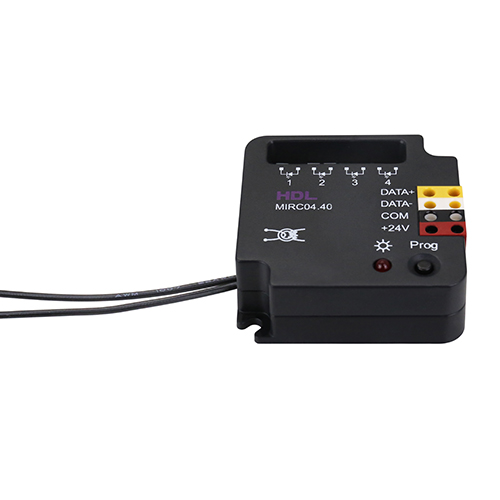

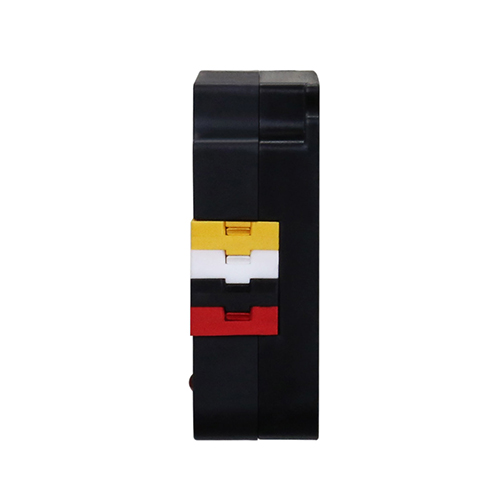

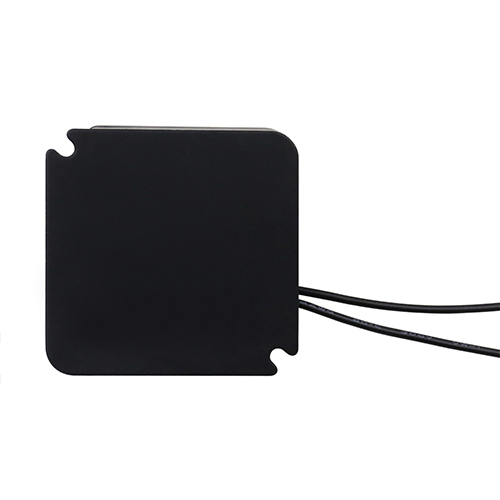

4CH IR Emitter with Current Detection

4CH IR Emitter with Current Detection can download codes saved in HDL Buspro Setup Tool, or codes uploaded to the IR Code Learner. HDL-MIRC04.40 can then transmit the IR codes to control IR devices, for example, air conditioner, TV, fan, projector, Set-Top Box, DVD etc. It also supports current detection for devices.

Model: HDL-MIRC04.40 Category:

Description

4CH IR Emitter with Current Detection can download codes saved in HDL Buspro Setup Tool, or codes uploaded to the IR Code Learner. HDL-MIRC04.40 can then transmit the IR codes to control IR devices, for example, air conditioner, TV, fan, projector, Set-Top Box, DVD etc. It also supports current detection for devices.

Đặc trưng

  • Current detection: Detect if the device is power-on or power-off.
  • 4 IR emission channels drive the transmitting tube directly.
  • Supports 24 devices and 100 IR codes.
  • Built-in IR code library holds IR codes from common appliance manufactures.
  • Codes that are not presented in the IR library can be uploaded via the IR learner.
  • Sequence function, to call the sequence by universal switch, the UV switch number is 201-208.
  • Supports up to 99 UV switches.
  • Supports online update via HDL Buspro Setup Tool.
  • Supports easy programming.

Thông số

Basic Parameters

Working voltage 12~30V DC
Working current 30mA/24V DC
Sending carrier wave frequency 38kHz
IR control distance 5m

External Environment

Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%

Specifications

Dimensions 45mm×45mm×16mm
Net weight 58g
Housing material Flame retardant ABS
Installation 86×86 wall box, Screw fix installation
Protection rating (Compliant with EN 60529) IP20
