Description
1CH Wireless Curtain Actuator contains 1-channel curtain control and 4-channel dry contact.Working with wireless gateway, the actuator can be used for controlling different targets.

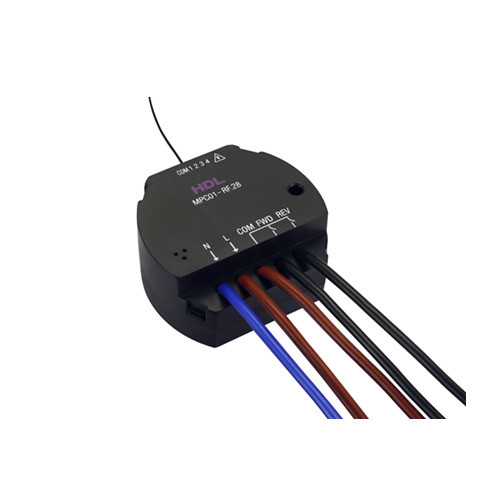

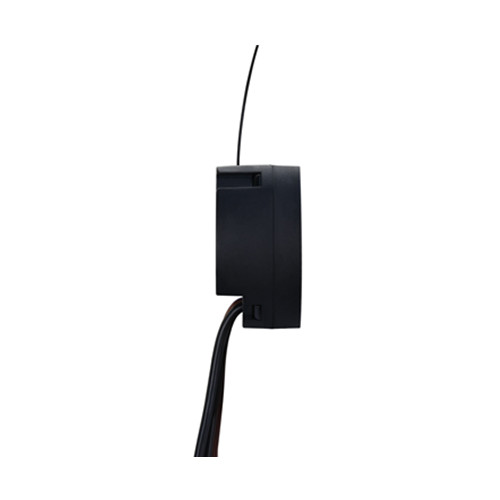

1CH Wireless Curtain Actuator
1CH Wireless Curtain Actuator contains 1-channel curtain control and 4-channel dry contact.Working with wireless gateway, the actuator can be used for controlling different targets.
Đặc trưng
- Open/close and stop/step control.
- 4CH dry contact can be used for controlling targets like dimming and switching, and supports electronic switches and mechanical switches.
- Switching modes supported by dry contact: Mechanical switch, Single on, Single off, Single on/off,Combination on, Combination off, Combination on/off, Multi-function, Parallel switch.
- Control targets: Scene, Sequence, Universal switch, Single channel lighting control, Broadcast scene,Broadcast channel, Curtain switch, GPRS control switch, Panel control, Music control.
- Compliant with IEEE.802.15.4 standard.
- Supports online upgrade.
- Supports easy programming via HDL ON APP.
Thông số
Basic Parameters
Input voltage：AC100-240V(50/60Hz)
Output current ：5A
Power consumption ：1.45W max.
Communication ：Buspro Wireless
Wireless transmission power： +10dbm
Wireless sensitivity ：-90dbm
Indoor communication distance ：≤30m
RSSI (Received Signal Strength Indication) ：>-80dbm
Frequency Allocation
WPAN (China) ：780 to 786MHz
SRD (Europe) ：864 to 870MHz
ISM (North America) ：904 to 928MHz
Default PSK ：HDL-SecurityKey0
External Environment
Working temperature ：-5℃~45℃
Working relative humidity ：≤90%
Storage temperature ：-20℃~60℃
Storage relative humidity ：≤93%
Specifications
Dimensions ：52×46.5×24(mm)
Net weight： 45g
Housing material ：PC, ABS
Installation ：Wall box
Protection rating (Compliant with EN 60529)： IP20
Fire and neutral wire ：1.5mm2(the module provides 15cm wire)
Load cable ：1.5mm2(the module provides 15cm wire)
Stripping length： 5~7mm
