Description
1200mA Power Supply Module can provide 24V DC voltage, 1200mA current with 2 connection types. The total current can reach 1200mA.

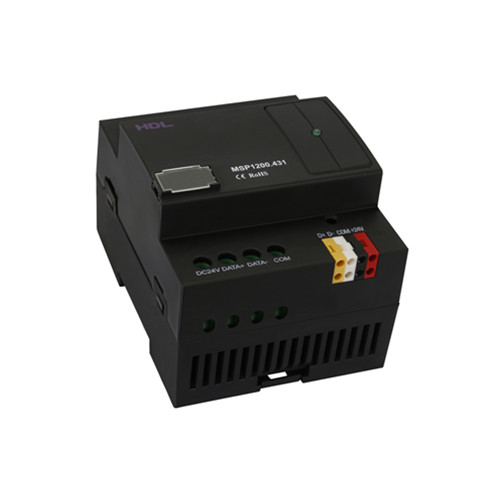

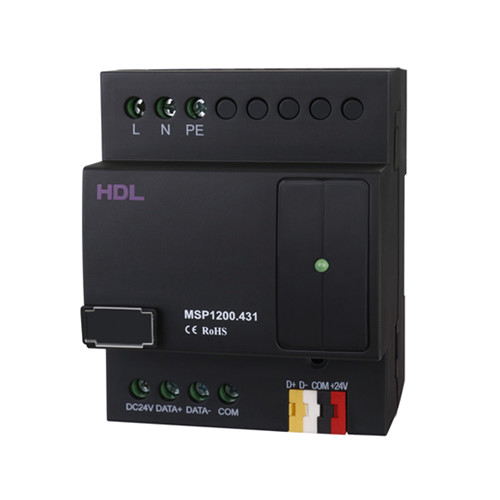

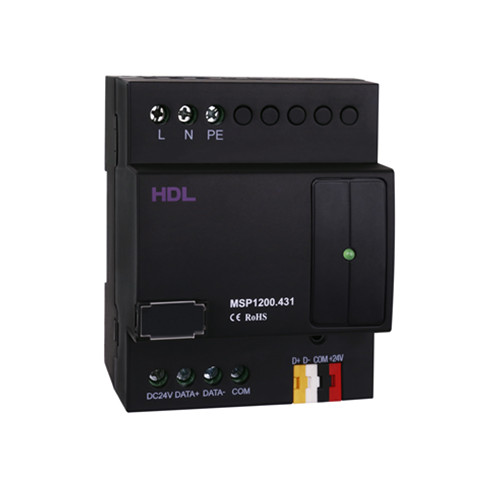

1200mA Power Supply Module
1200mA Power Supply Module can provide 24V DC voltage, 1200mA current with 2 connection types. The total current can reach 1200mA.
Đặc trưng
- Protection: Short circuit and over current protection
- Power Supply: 24V DC, 1200mA
- Ripple Wave: Less than 150mV
Thông số
Basic Parameters
Input voltage AC100-240V(50/60Hz)
Output current 1200mA
Output voltage 24V DC
Output ripple wave Less than 150mV
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 72mm×90mm×64mm
Net weight 188g
Housing material Nylon, PC

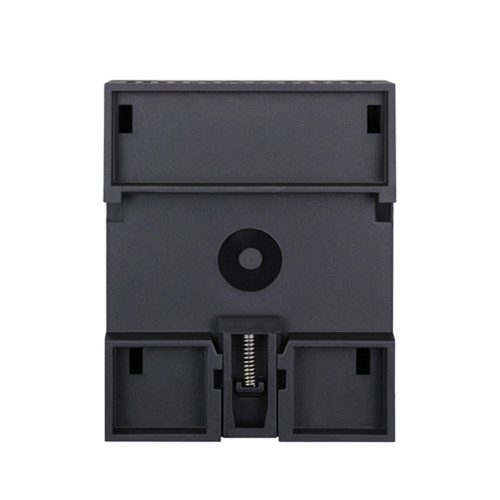

Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
