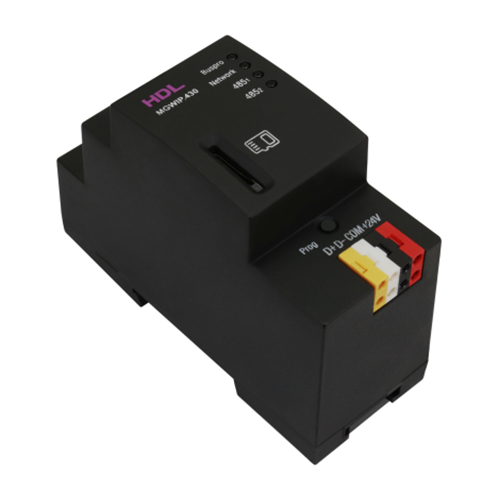

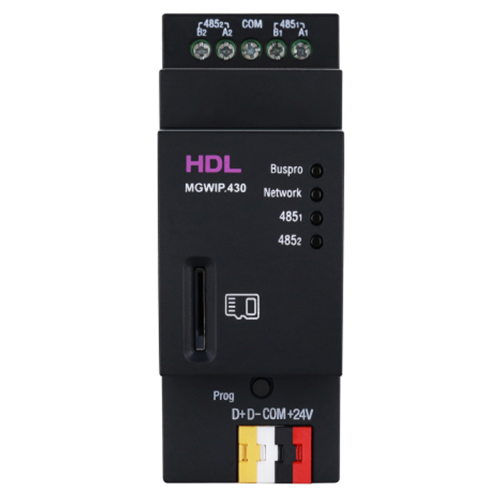

Buspro Gateway

Buspro Gateway is a product designed based on Linux system hardware platform. It supports HDL Buspro Setup Tool, ON Pro, Cloud server, etc., integrating scene, logic, security, clock, server automatic prompt upgrade and other functions.

Model: HDL-MGWIP.430 Category:

Description

Buspro Gateway is a product designed based on Linux system hardware platform. It supports HDL Buspro Setup Tool, ON Pro, Cloud server, etc., integrating scene, logic, security, clock, server automatic prompt upgrade and other functions.

Đặc trưng

Its main functions include:

  • Real-time update of device status and device control
  • Scene function: add scene, * area capture scene, * movie (dynamic) scene function
  • Automation function
  • Security function
  • Support local clock, network clock, automatic synchronization of network time
  • The server application automatically prompts for upgrade
  • Supported protocol http tcp udp mqtt
  • Communication via LAN between App and gateway
  • APP remote access through the Cloud
  • System detection, device status report
  • Support backup upload and download of APP, Cloud, * SD card, debugging software
  • Drive management of third-party products
  • Factory reset function
  • Data backup and data recovery function

Note: The functions with * are not yet open for use.

Thông số

Basic Parameters

Working voltage: 15~30V DC
Working current: 70mA/24V DC
Communication protocol: HDL Buspro, Ethernet, RS485
Hardware information: 1.2GHz, 512M RAM, 4G Flash
Operation system: Linux 3.2.0 Kernel

External Environment

Working temperature: -5℃~45℃
Working relative humidity: ≤90%
Storage temperature: -20℃~60℃
Storage relative humidity: ≤93%

Specifications

Dimensions: 90×36×63.7 (mm)
Net weight: 82g
Housing material: PA66
Installation: 35mm DIN rail installation
Protection rating (Compliant with EN 60529): IP20
