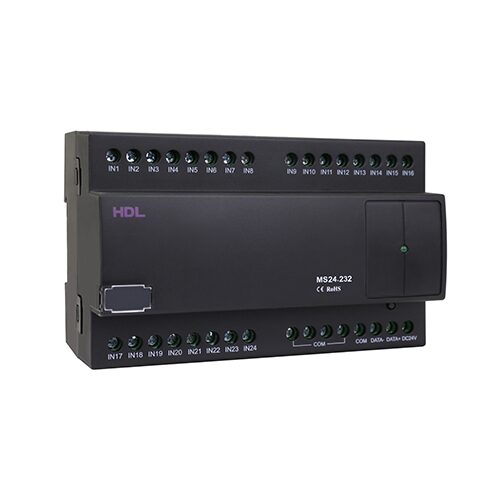

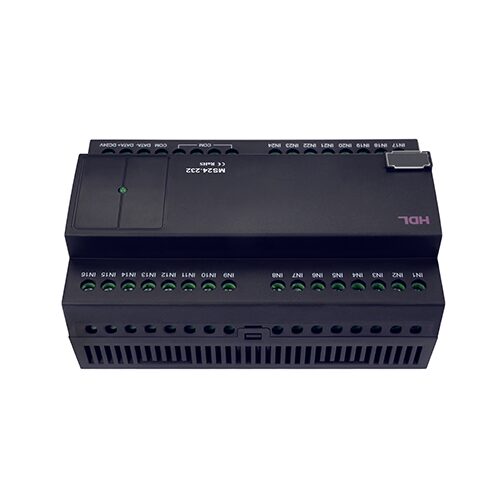

24-Zone Dry Contact Module

24-Zone Dry Contact Module is a sensor signal input module, which supports up to 24 dry contact inputs.

Model: HDL-MS24.232 Category:

Description

24-Zone Dry Contact Module is a sensor signal input module, which supports up to 24 dry contact inputs.

Đặc trưng

  • 24 channels of dry contact input.
  • Switch types include: mechanical switch, single-on, single-off, single-on/off, combination on, combination off, combination on/off, invalid switch, (Both mechanical switches and combination switches can set 49 control targets).
  • Control target mode: scene, sequence, universal switch, single channel lighting control, broadcast scene, broadcast channel, curtain control, panel control, GPRS etc.
  • Security function, should be used in conjunction with the security module.
  • Supports online upgrade via HDL Buspro.

Thông số

Basic Parameters

Working voltage 12~30V DC
Working current 12mA/24V DC
Communication HDL Buspro

External Environment

Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%

Specifications

Dimensions 144mm×90mm×64mm
Net weight 373g
Housing material ABS，PC
Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
