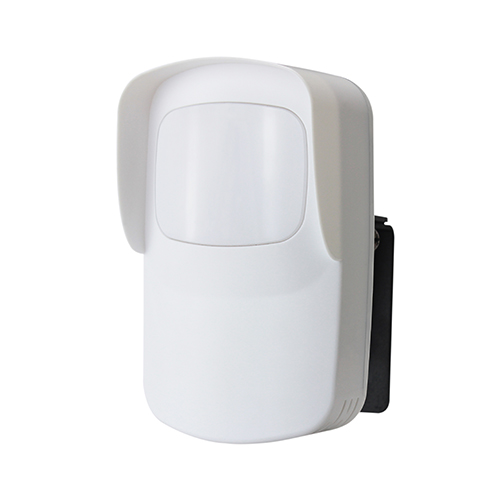

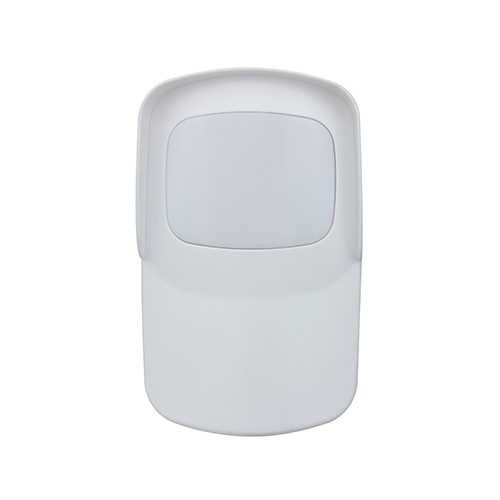

Wall Mount Outdoor Microwave Sensor

Wall Mount Outdoor Microwave Sensor has various logic conditions, including LUX sensor, microwave movement sensor, humidity sensor, temperature sensor, dry contact, universal switch, etc. Internal logic makes certain arrangements of the conditions to form various logic functions in order to satisfy customers’ requirements. It also supports HDL-Security mode.

Model: HDL-MSOUT.4W Category:

Description

Wall Mount Outdoor Microwave Sensor has various logic conditions, including LUX sensor, microwave movement sensor, humidity sensor, temperature sensor, dry contact, universal switch, etc. Internal logic makes certain arrangements of the conditions to form various logic functions in order to satisfy customers’ requirements. It also supports HDL-Security mode.

Đặc trưng

  • Built-in LUX sensor, microwave movement sensor, humidity sensor, temperature sensor, dry contact, universal switch.
  • Two logical relations: OR, AND.
  • 24 logic blocks: Either true logic or false logic can trigger the targets respectively. Each logic can set 20 targets.
  • Adjustable microwave sensitivity between 1 to 100
  • Each logic supports trigger delay time from 0 to 3600s.
  • The range of universal switch number in logic is from 201 to 248, and each logic has 2 universal switch numbers. Universal switch can close automatically, and the time range is 1-3600s.
  • Supports security function.

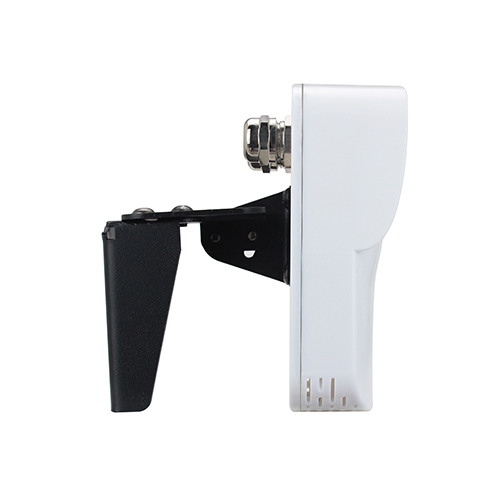

  • The adjustable range of sensor angle in up-down direction is -25 °~ +25 °, and in left-right direction is -45 °~ +45 °.
  • Sensor has heating function. When the temperature is below -5°C, it will heat until the circuits can work normally.
  • Tamper-proof function.
  • Supports online upgrading.

Thông số

Basic Parameters

Working voltage 12~30V DC
Working current 31mA/24V DC
Temperature detection range -40°C~60°C
Illumination detection range 0~15000LUX
Humidity detection range 20~95%RH
Microwave detection range Φ30m (Installation height: 3m)

External Environment

Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%

Specifications

Dimensions 126mm×78mm×42mm
Net weight 360g
Housing material :ASA, stainless steel

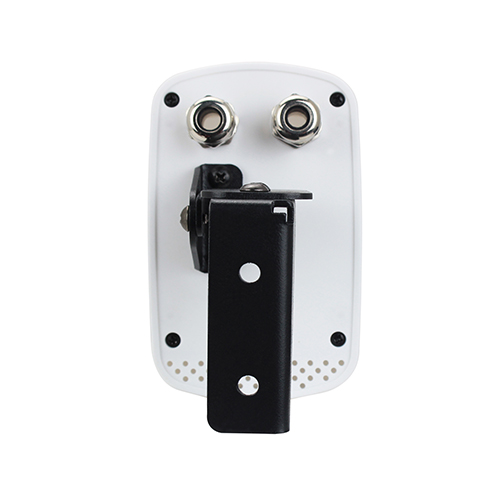

Installation :Screw fixation
Protection rating (Compliant with EN 60529) IP54
