Description

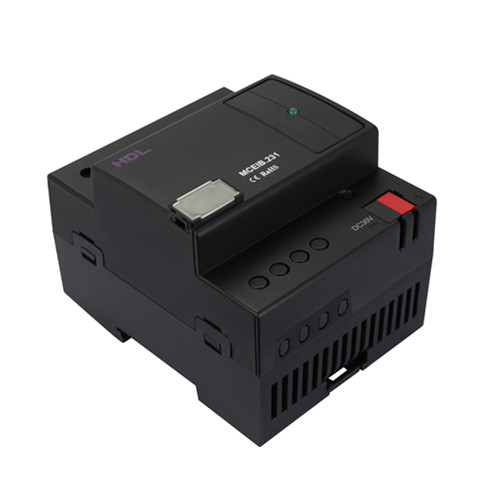

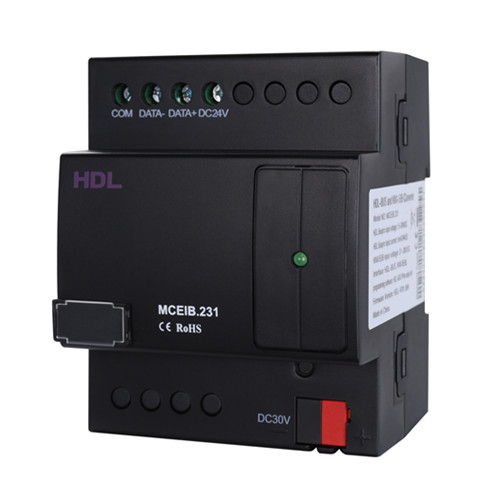

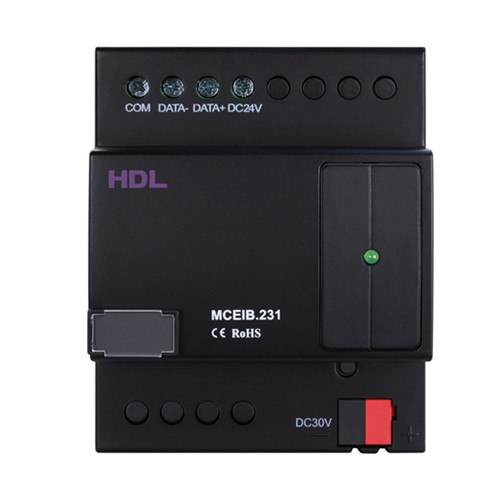

HDL-MCEIB.231 HDL-BUS and KNX-EIB Interface Converter is a gateway between HDL Buspro and KNX/EIB.
HDL-BUS and KNX-EIB Interface Converter
HDL-MCEIB.231 HDL-BUS and KNX-EIB Interface Converter is a gateway between HDL Buspro and KNX/EIB.
Đặc trưng
- Two-way communication for HDL Buspro and KNX/EIB.
- Various data point format supported.
- Controls up to 254 targets
Thông số
Basic Parameters
HDL Buspro working voltage 15~30V DC
HDL Buspro working current 5mA/24V DC
KNX/EIB working voltage 21~30V DC
KNX/EIB working current 6mA/30V DC
Communication HDL Buspro, KNX/EIB
Software programming HDL Buspro Setup Tool
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 72mm×90mm×64mm
Net weight 174g
Housing material Nylon, PC
Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
