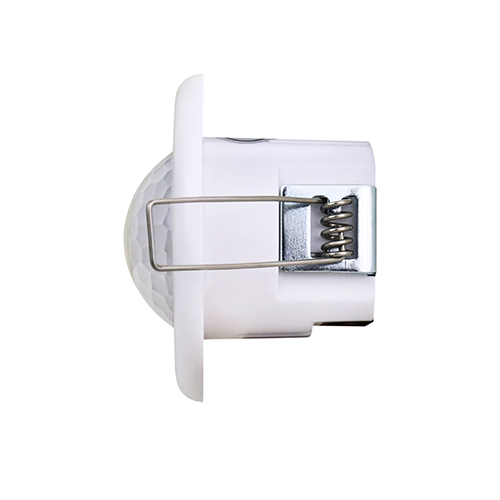

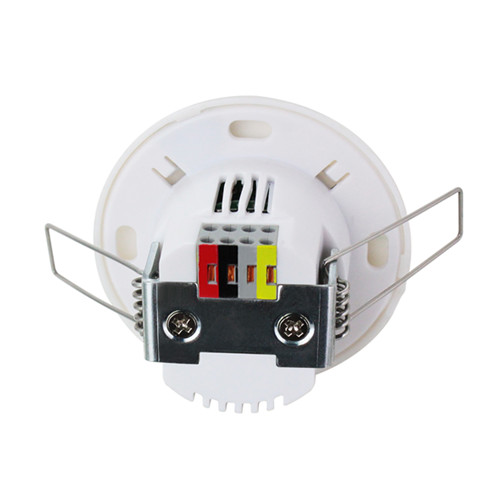

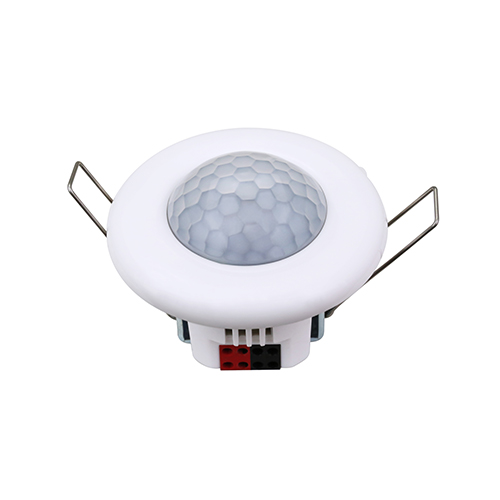

Ceiling Mount PIR & LUX Sensor

Ceiling Mount PIR & LUX Sensor includes PIR motion sensor, LUX sensor. And internal logic block can combine all the sensors for different application in accordance with customers’ needs. The sensor supports HDL security mode and command.

Model: HDL－MSP02.4C Category:

Description

Ceiling Mount PIR & LUX Sensor includes PIR motion sensor, LUX sensor. And internal logic block can combine all the sensors for different application in accordance with customers’ needs. The sensor supports HDL security mode and command.

Đặc trưng

  • Equipped with Lux sensor, PIR sensor and universal switch, which can be used as logic conditions.
  • 2 logic relations (OR, AND) can be selected.
  • 24 logic blocks function, up to 20 control targets in each logic block.
  • Adjustable PIR sensitivity from 1 to 10.
  • Universal switch number are assigned to 201-248 in logic conditions. And 2 switch numbers for each logic and universal switch support auto-off function. (Delay time: from 1 to 3600 seconds).
  • Logic can trigger different targets no matter it is true or false.
  • Security function (security module required)
  • Online update supported via HDL Buspro Setup Tool.

Thông số

Basic Parameters

Working voltage 18~30V DC
Working current 20mA/24V DC
Detection range Φ6m (Installation height: 3m)
Illumination sensing range 0-500lux

External Environment

Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%

Specifications

Dimensions Φ63×46.6(mm)
Net weight 91g
Housing material ABS, Infrared lens
Installation: Ceiling-mounted/Flush-mounted
Protection rating (Compliant with EN 60529) IP20
