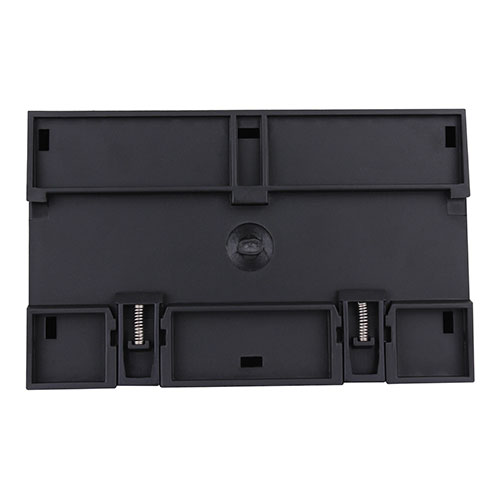

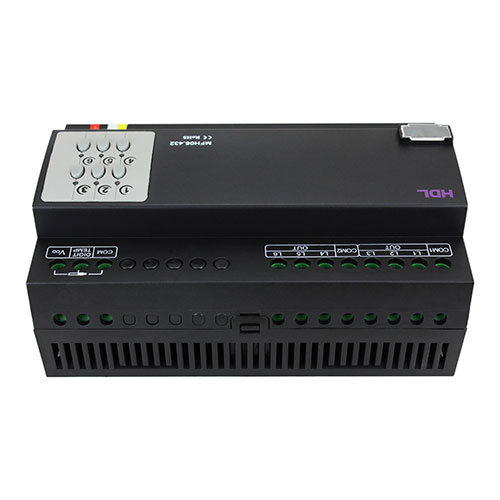

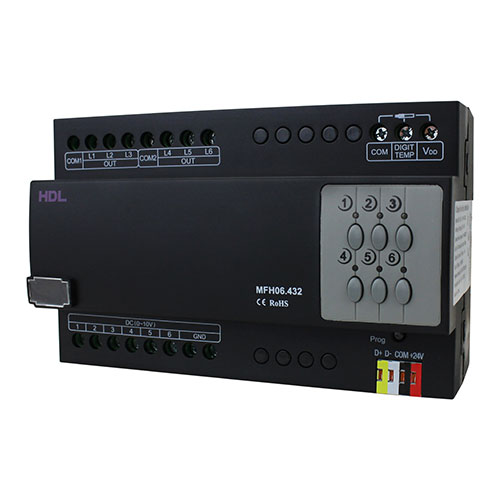

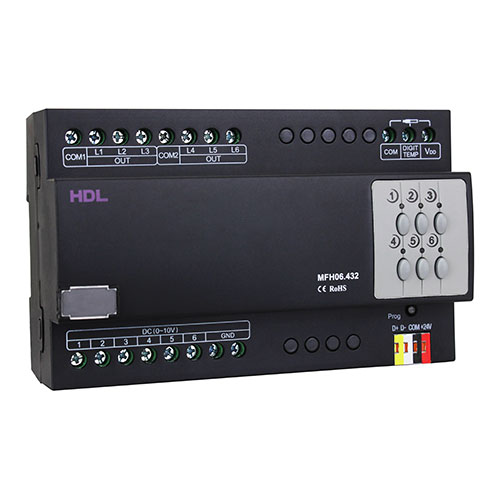

6CH Floor Heating Module

6CH Floor Heating Module is a 6-channel floor heating controller. Each channel supports Relay output and 0-10V power output. With built-in PI controller, 13 digital temperature sensors and overheat protection function, the Module can be used to control floor heating and indoor temperature.

Model: HDL-MFH06.432 Category:

Description

6CH Floor Heating Module is a 6-channel floor heating controller. Each channel supports Relay output and 0-10V power output. With built-in PI controller, 13 digital temperature sensors and overheat protection function, the Module can be used to control floor heating and indoor temperature.

Đặc trưng

  • Detects temperature with digital temperature sensor DS18B20, maximum length of the sensor cable is 100 meters.
  • 6 channels of separate PI Control, supports floor heating and floor cooling.
  • Supports AC/DC electrical heating valve and 0-10V electrical heating valve.
  • The control range of temperature is 5~40℃, the accuracy is 0.5℃.
  • Supports flush function, manual flush or timer controlled.
  • Supports master and slave mode.
  • Optional multiple mode: Timer, away, home, normal, etc.
  • Maximum and minimum heating value can be set.
  • Expand control: Command can be sent to external high power relay, to control the high power loads, like heater.
  • Supports floor overheat protection and temperature sensor failure protection.
  • Online update supported via HDL Buspro Setup Tool.

Thông số

Basic Parameters

Working voltage 15~30V DC
Working current 150mA/24V DC
Output channels 6
DC 0-10V output current 10mA
Input voltage AC100-240V (50/60Hz)
Relay output current 1A
Relay unit life time 5,000,000 actuations

External Environment

Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%

Specifications

Dimensions 144mm×90mm×64mm
Net weight 285g
Housing material Nylon, PC
Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
