Description
48CH DMX Scene Controller supports DMX512. With 48 areas and 99 scenes in each area, the controller is designed to control RGB LED strips, RGB lights, and other DMX devices using 48 channels.

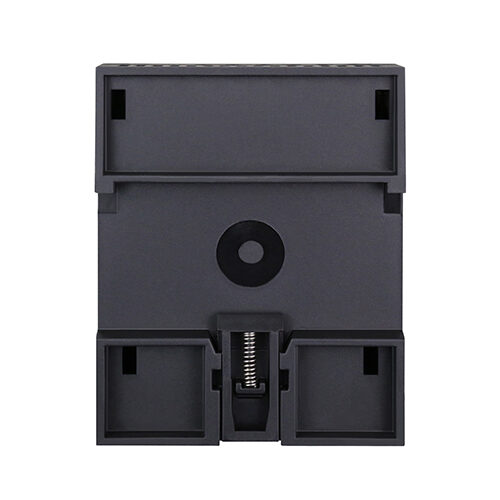

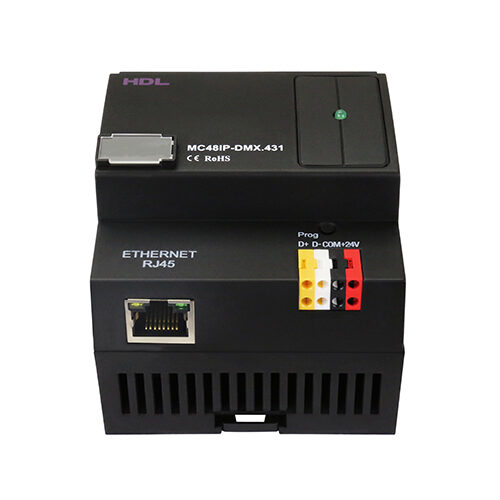

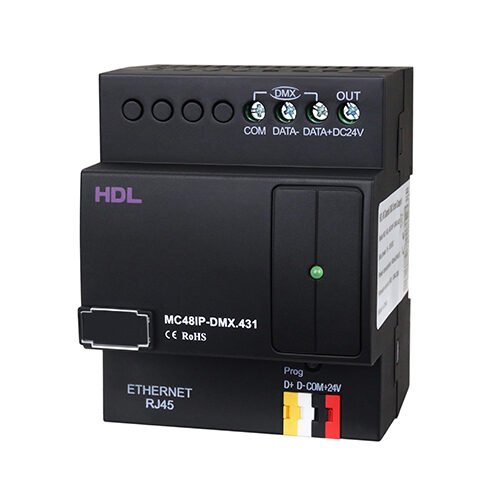

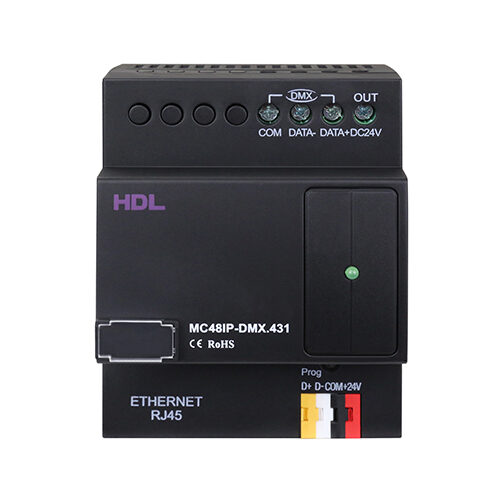

48CH DMX Scene Controller
48CH DMX Scene Controller supports DMX512. With 48 areas and 99 scenes in each area, the controller is designed to control RGB LED strips, RGB lights, and other DMX devices using 48 channels.
Đặc trưng
- 48-channel, up to 48 separate areas
- 0-99 scenes, running time up to 60 minutes for each, can be set for each area
- Up to 99 sequences supported, 4 running modes (backward, forward & backward, random) available for each sequence
- DMX512 (1990 version)
- Low threshold, high threshold, maximum threshold available for each channel for different devices
- Gateway between HDL Buspro and Ethernet
Thông số
Basic Parameters
Working voltage 12~30V DC
Working current 40mA/24V DC
Communication HDL Buspro
RJ45 connection RJ45-TCP/IP network interface
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 72mm×90mm×64mm
Net weight 142g
Housing material Nylon, PC
Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
