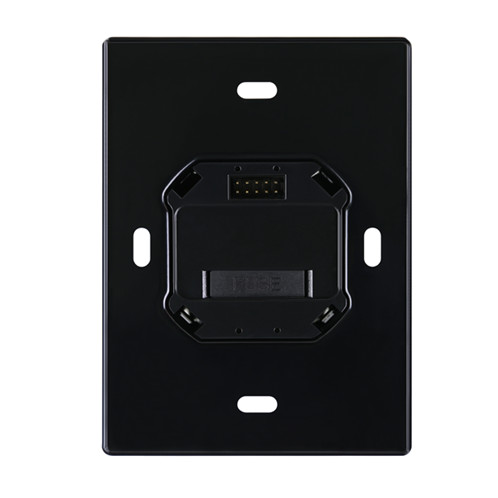

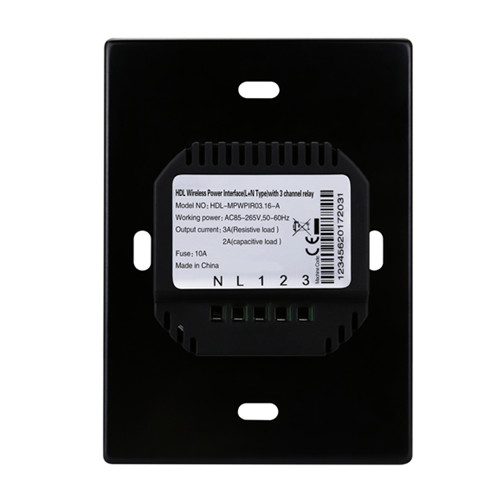

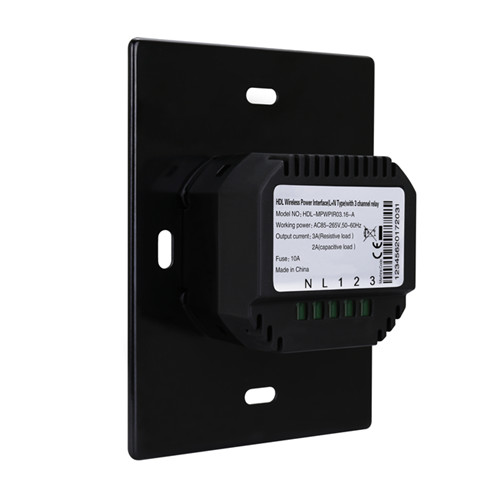

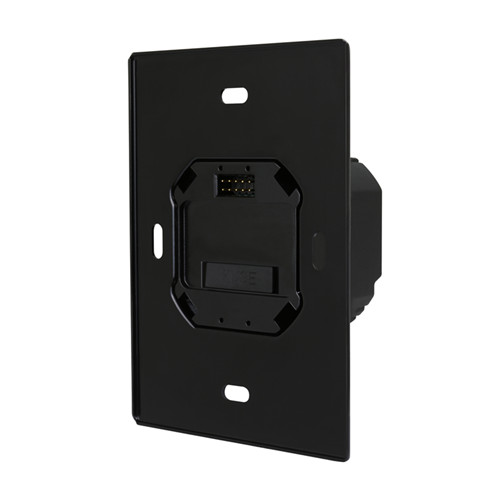

3CH Wireless Switch Power Interface US (L+N Type)

MPWIR03.16-A Wireless power interface, which is line and nature wire for relay, works with wireless panel, and has 3CH relay output.

Model: HDL-MPWPIR03.16-A Category:

Description

MPWIR03.16-A Wireless power interface, which is line and nature wire for relay, works with wireless panel, and has 3CH relay output.

Đặc trưng

  • Supply DC5V power for wireless panels
  • 3 relay output channel
  • Power protection

Thông số

Electrical Parameters:

Product name Line and nature wire for 3CH relay
Product number: HDL-MPWPIR03.16-A
Working voltage AC85-270V 50/60Hz
Output channel 3CH relay
Output current: 3A 250VAC(resistive load), 2A 250VAC(capacitive load)
Mechanical life time of relay 1×107 times
Electronic life time of relay 1×105 times
Fuse 10A

Environmental Conditions:

Working temperature -5℃~45℃
Working relative humidity <90%<>
Storage temperature -20℃~+60℃
Storage relative humidity <93%<>
Approved: CE, RoHS

Product Information:

Dimensions: 80×110.5×39(mm)(US)
Weight 128g/138g
Housing material Inflaming relative nylon, iron
Installation wall box (the depth of wall box should not less than 45mm)
Protection rating IP20
Line and nature wire 1~2.5mm2 copper cable
Load wire 1~2.5mm2 copper cable
