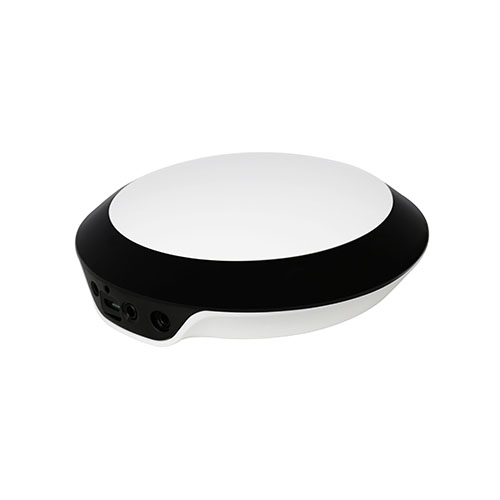

Wireless IR Emitter

Wireless IR Emitter, which adopts HDL Buspro Wireless communication, enables IR control of devices such as air conditioners, TVs, fans, etc. by downloading various infrared codes stored in the database via HDL Buspro Setup Tool, or downloading infrared codes learned by infrared learner.

Model: MIR01R-RF.10 Category:

Description

Wireless IR Emitter, which adopts HDL Buspro Wireless communication, enables IR control of devices such as air conditioners, TVs, fans, etc. by downloading various infrared codes stored in the database via HDL Buspro Setup Tool, or downloading infrared codes learned by infrared learner.

Đặc trưng

  • Directly drive LED emission tube.
  • 3 IR emission channels.
  • Supports 10 devices and 100 infrared learning codes.
  • Supports a variety of remote control types. You can find the brand you need and determine the model number by trial code
  • When there is no infrared code required in the database, you can learn the codevia the infrared learner and then download it to the device.
  • Sequence function supports simultaneously emitting multiple infrared codes. The sequence can be called by the universal switch, with general switch number:201-208.
  • Built-in clock for timing, supports 16 alarm reminder control.
  • Temperature detection and broadcast.
  • Compliant with IEEE.802.15.4 standard.
  • Supports online update.
  • Supports easy programming via HDL ON APP.

Thông số

Basic Parameters:

Working voltage: 5V DC (From USB)
Working current: 20mA / 5V DC
IR emission carrier frequency: 38kHz
IR Control distance (Channel 1): 5m

Communication: Buspro wireless

Wireless transmission power: +10dbm
Wireless sensitivity: -90dbm
Indoor communication distance: ≤30m
RSSI (Received Signal Strength Indication): >-80dbm

Frequency Allocation:

WPAN(China): 780 to 786MHz
SRD(Europe): 864 to 870MHz
ISM(North America): 904 to 928MHz
DefaultPSK: HDL-SecurityKey0

External Environment:

Working temperature: -5℃~45℃
Working relative humidity: ≤90%
Storage temperature: -20℃~60℃
Storage relative humidity: ≤93%

Specifications:

Dimensions: Φ120×37（mm）
Netweight: 125g
Housingmaterial: PC

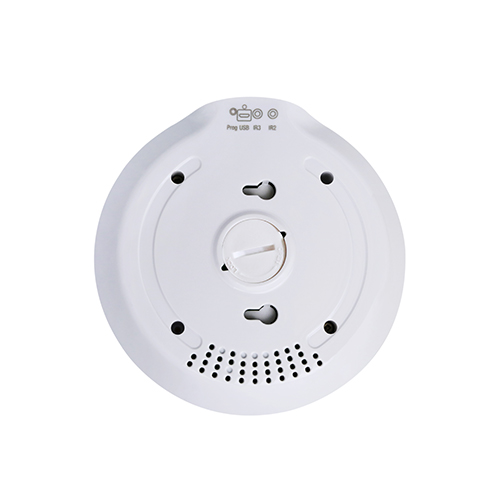

Installation: Free standing or wall hanging
Protectionrating (Compliant with EN 60529): IP20
Battery: LIR2032 3.6V
