Description
Power Interface With 3CH 10A Relay is a standard panel power interface with relay channels. The power interface has an independent device ID address, including 3 10A relay channels, and adopts HDL Buspro protocol 485 Bus communication.

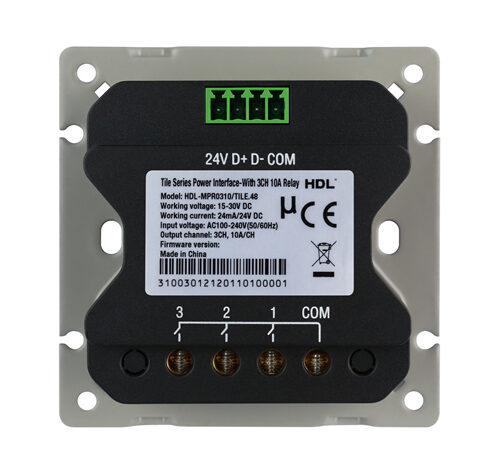

Tile Series Power Interface-With 3CH 10A Relay
Power Interface With 3CH 10A Relay is a standard panel power interface with relay channels. The power interface has an independent device ID address, including 3 10A relay channels, and adopts HDL Buspro protocol 485 Bus communication.
Đặc trưng
Its main functions include:
- With 3-channel 10A magnetic latching relay channel

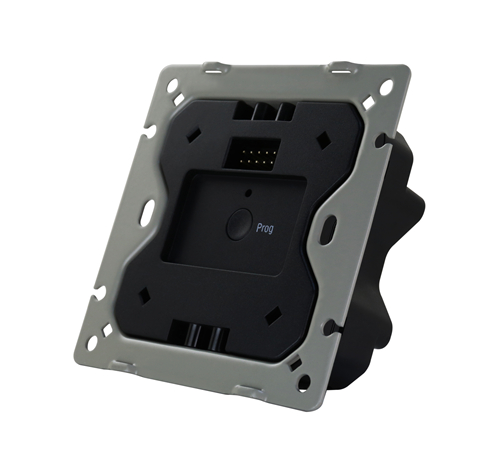

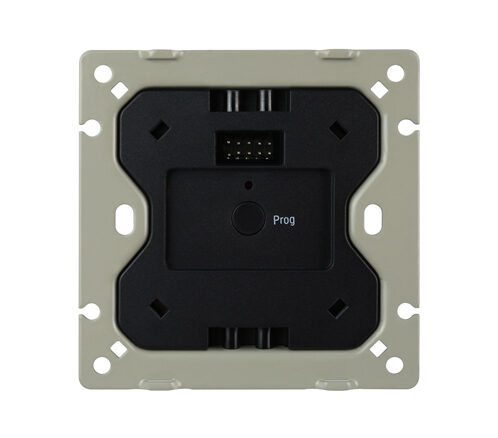

- With independent programming button and programming indicator
- Short press the programming button to realize all relay channels on/off
- Provide power and communication interface for HDL Tile series panel
Thông số
Basic Parameters
Working voltage：15-30V DC
Working current：24mA/24V DC
Input voltage：AC100-240V (50/60Hz)
Output channel：HDL-MPR0310/TILE.48: 3CH, 10A/CH
Communication：HDL Buspro
Cable diameter of Buspro terminal：0.6-0.8mm
External Environment
Working temperature：-5℃~45℃
Working relative humidity：≤90%
Storage temperature：-20℃~60℃
Storage relative humidity：≤93%
Specifications
Dimensions：81.4mm×81.4mm×32.4mm
Net weight：99g
Housing material：Iron, PC
Installation：Wall box
Protection rating (Compliant with EN 60529)：IP20
