Description
Power Interface With 2CH 10A Relay is a standard panel power interface with relay channels. The power interface has an independent device ID address, including 2 10A relay channels, and adopts HDL Buspro protocol 485 Bus communication.

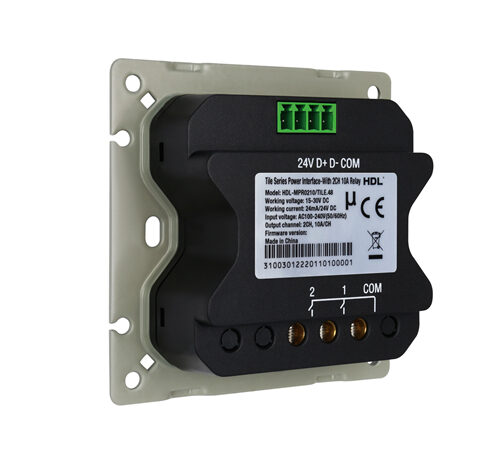

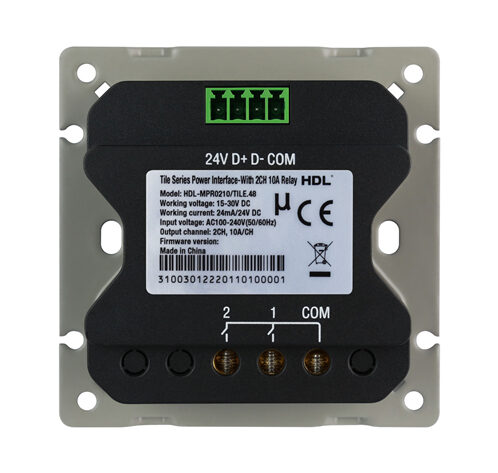

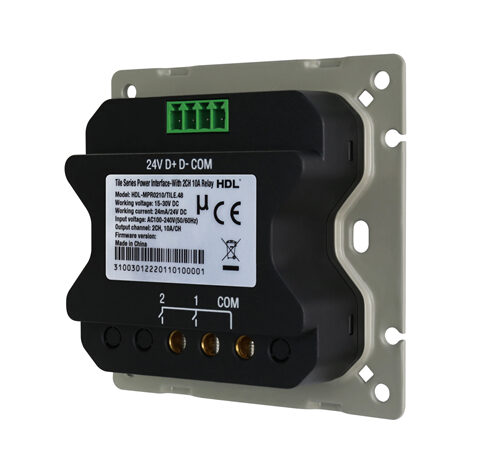

Tile Series Power Interface-With 2CH 10A Relay
Power Interface With 2CH 10A Relay is a standard panel power interface with relay channels. The power interface has an independent device ID address, including 2 10A relay channels, and adopts HDL Buspro protocol 485 Bus communication.
Đặc trưng
Its main functions include:
- With 2-channel 10A magnetic latching relay channel

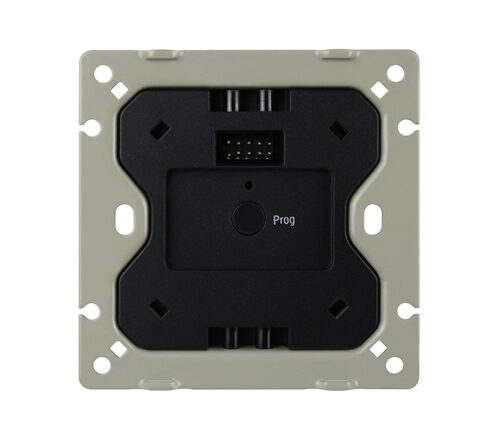

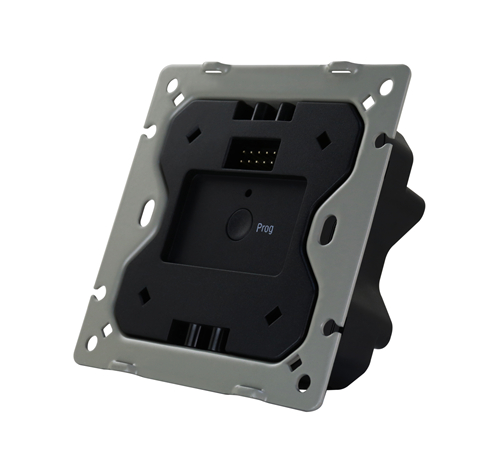

- With independent programming button and programming indicator
- Short press the programming button to realize all relay channels on/off
- Provide power and communication interface for HDL Tile series panel
Thông số
Basic Parameters
Working voltage ：15-30V DC
Working current ：24mA/24V DC
Input voltage：AC100-240V (50/60Hz)
Output channel ：HDL-MPR0210/TILE.48: 2CH, 10A/CH
Communication：HDL Buspro
Cable diameter of Buspro terminal：0.6-0.8mm
External Environment
Working temperature ：-5℃~45℃
Working relative humidity ：≤90%
Storage temperature ：-20℃~60℃
Storage relative humidity ：≤93%
Specifications
Dimensions：81.4mm×81.4mm×32.4mm
Net weight：99g
Housing material：Iron, PC
Installation：Wall box
Protection rating (Compliant with EN 60529) ：IP20
