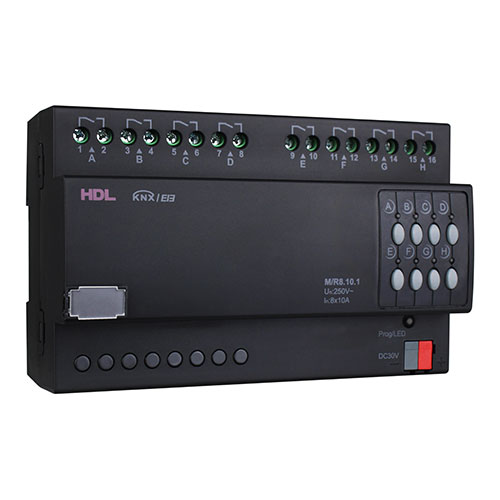

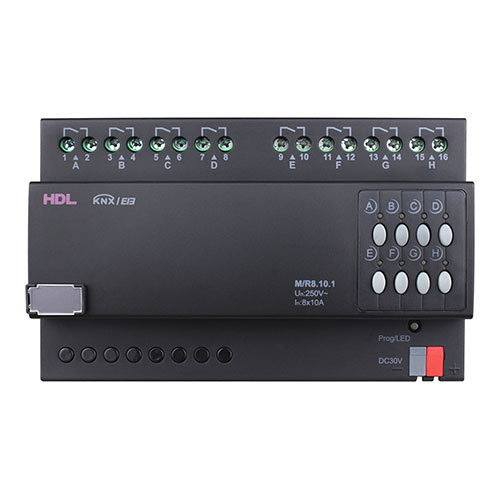

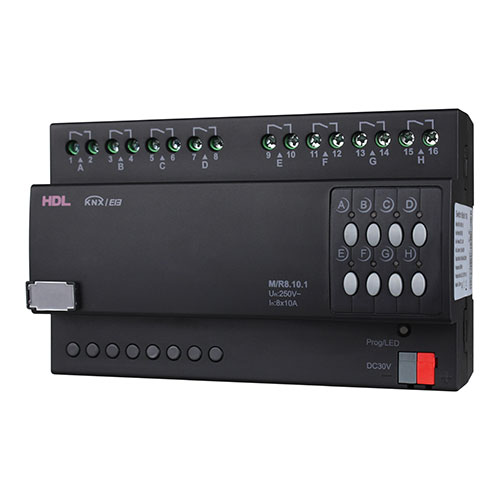

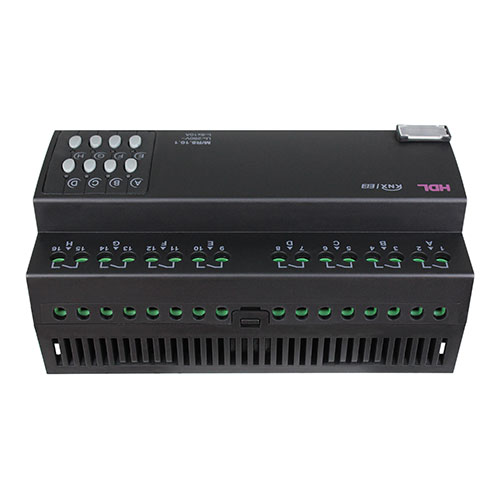

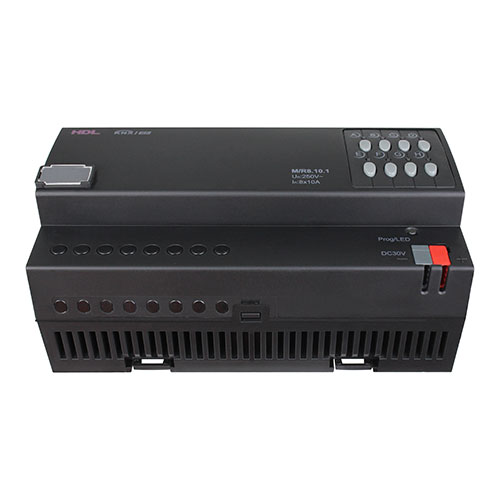

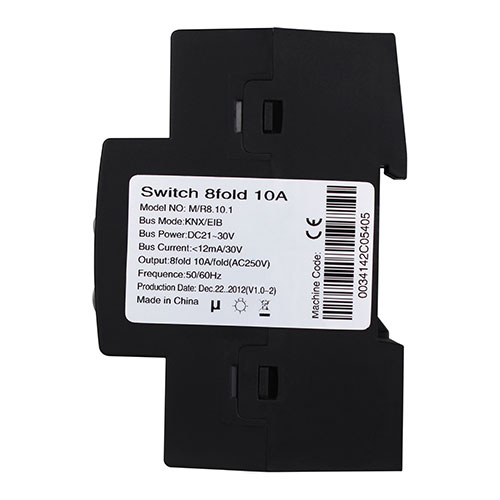

KNX 8CH 10A High Power Switch Actuator

KNX 10A High Power Switch Actuator includes 3 types (4CH, 8CH， and 12CH) of output circuits, and each channel outputs 10A current. With characteristics of long life, low power consumption and fast execution speed, this series of actuators are in full compliance with European KNX safety standards and protocols of high-power switching

Model: M/R8.10.1 Category:

Description

KNX 10A High Power Switch Actuator includes 3 types (4CH, 8CH， and 12CH) of output circuits, and each channel outputs 10A current. With characteristics of long life, low power consumption and fast execution speed, this series of actuators are in full compliance with European KNX safety standards and protocols of high-power switching

Đặc trưng

  • 10A High Power Switch Actuators include 3 types: 4, 8 and 12 channels of actuator.
  • Maximum output current of each channel:10A.
  • Control functions: Statistical ON time, Status response, Status recall, Staircase light, Flashing, ON/OFF delay, Protection delay, Scene control, Threshold function, Curtain control, etc.
  • Logic function: AND, OR, XOR.
  • Heating function: PWM(1bit/1byte) control output.

Thông số

Basic Parameters

Working voltage 21~30V DC Class 2
Working current 15mA/30V DC
Input voltage 120V/240V AC (50/60Hz)
Communication KNX
Cable diameter of KNX terminal 0.6-0.8mm
Rated switch current 10A lighting load, max inrush 500A
Operation times >100,000
Line in/Line out terminals 2.5-4mm2
Output channel 4CH/10A, 8CH/10A, 12CH/10A
Capacitance <300μf<>

External Environment

Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%

Specifications

Dimensions
HDL-M/R4.10.1
90×72×64(mm)
HDL-M/R8.10.1
90×144×64(mm)
HDL-M/R12.10.1
90×216×64(mm)
Net weight
HDL-M/R4.10.1: 256g
HDL-M/R8.10.1: 576g
HDL-M/R12.10.1: 823g
Housing material Flame-retardant nylon
Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
