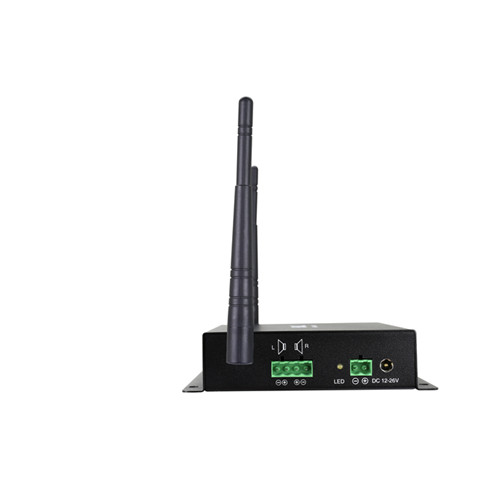

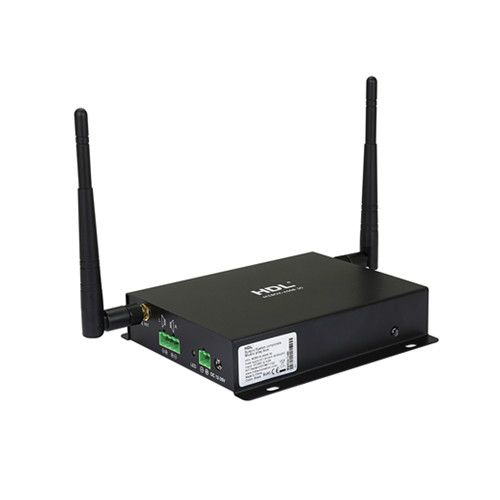

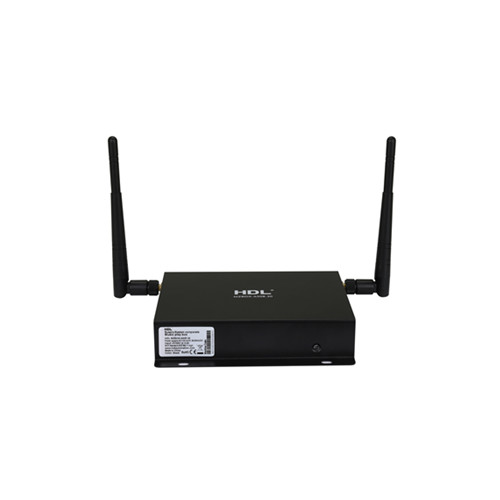

HomePlay Network Player

The HomePlay network player has been created to stream crystal clear audio to multiple rooms within a building. Controlled via an iOS / Android app, or a wall mounted HDL user interface, HomePlay allows you to manage the entirety of your audio collection from a single point, and stream audio directly from your favorite online providers. With the ability to directly play files from network attached storage devices (NAS), USB port, and your connected iOS & Android devices, total audio control has never been easier. Capable of playing MP3, WMA, AAC, AAC+, ALAC, FLAC, APE, and WAV file formats all of your music is now just a tap or click away.

Model: MZBOX-A50B.30 Category:

Description

The HomePlay network player has been created to stream crystal clear audio to multiple rooms within a building. Controlled via an iOS / Android app, or a wall mounted HDL user interface, HomePlay allows you to manage the entirety of your audio collection from a single point, and stream audio directly from your favorite online providers. With the ability to directly play files from network attached storage devices (NAS), USB port, and your connected iOS & Android devices, total audio control has never been easier. Capable of playing MP3, WMA, AAC, AAC+, ALAC, FLAC, APE, and WAV file formats all of your music is now just a tap or click away.

Đặc trưng

  • Multi format support
  • High fidelity audio streaming
  • Simultaneous multi source multi room streaming
  • Fully compatible with HDL room scenes and sequences
  • Supports music playback via connecting external audio devices

Thông số

Audio system:

Power Amplifier Rated output 32W+32W(8Ω/ohms,1kHz, 0.7%)
Speaker Impedance 4-32Ω
Dynamic Range >87dB
S/N Ratio: >88 dB
Stereo Separation >81.5dB (1KHz)
Frequency Response 20Hz to 20KHz (±3dB)

Music Source

Online Music Services Supported: Pandora, Spotify, vTuner, Tidal, Qobuz, Rhapsody, iHeartRadio and TuneIn, more coming soon.
Music from Local Storage
iTunes music stored locally on iOS device, music files on Android device or USB storage NAS
Play from your home network attached storage, DLNA compliant USB USB interface stored
Line in Audio input
Bluetooth Supported
BQB Approval, BT 4.0, Dual-mode(2.1
BR / EDR + Low Energy Controllers),
Compatible with v2.1 + EDR and Bluetooth 4.0 Low Energy (BLE), Max Audio Formats Supported: MP3/ WMA/ AAC/ AAC+/ ALAC/ FLAC/ APE/ WAV

WiFi Standard 802.b/g/n
Speed(Max) 150M
Operating Frequency 2.4G
SAR Value 95dB
Sample Rate 44.1Khz
Antenna 1T1R
Antenna gain 3dBi

NETWORKING

Wireless Connectivity: Supports 802.11 a/b/g/n standards.
Wired Connectivity: Single 10/100M RJ-45 jack

Environmental Conditions：

Working temperature -5℃~40℃
Working relative humidity Up to 90%
Storage temperature -20℃~+60℃
Storage relative humidity Up to 93%
Approved: CE, RoHS

Product Information：

Power supply AC100-240V, 60/50Hz/DC
Input DC24V @ 3.3A
Dimensions(HxWxD): 144mm(184mm with antenna), x112mmx31mm
Weight 1.3Kg
Housing material Glass , ABS, steel plate
Installation Desk /wall hanging/DB Box
Protection rating IP20
