Description
Ceiling Mount Ultrasonic Sensor includes ultrasonic sensor and LUX sensor. The logic block can combine all conditions (ultrasonic sensor, LUX sensor, universal switch and logic block) for different application.

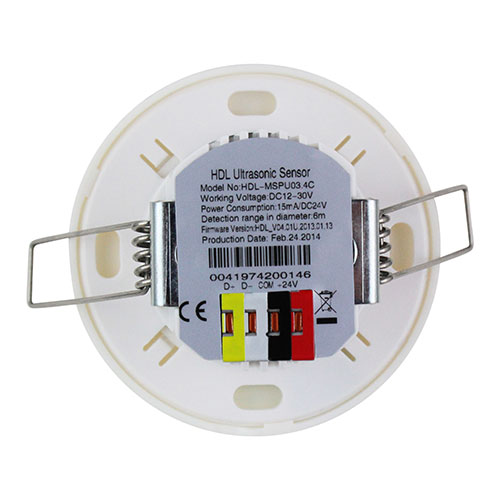

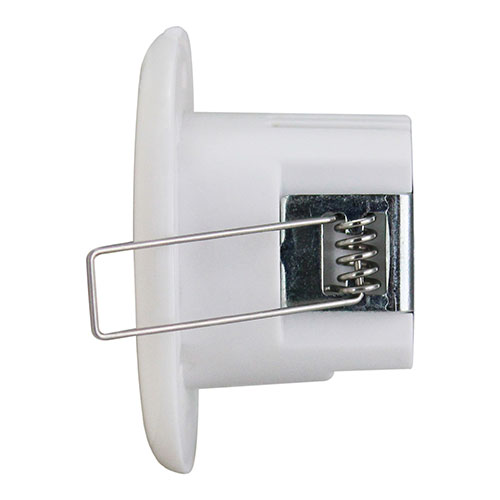

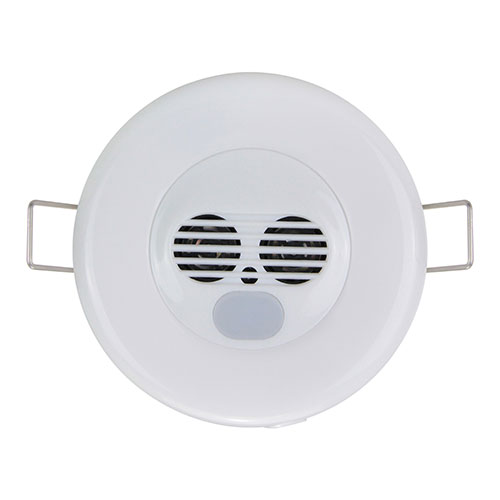

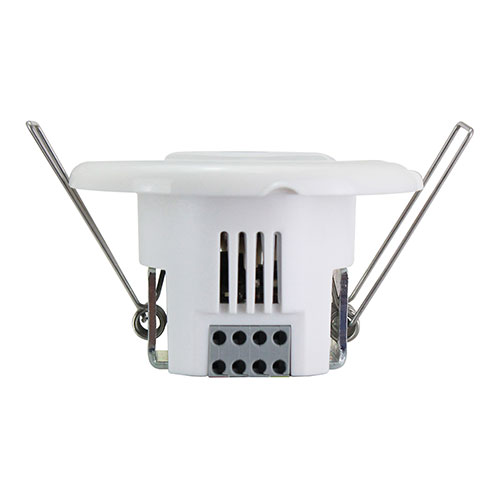

Ceiling Mount Ultrasonic Sensor
Ceiling Mount Ultrasonic Sensor includes ultrasonic sensor and LUX sensor. The logic block can combine all conditions (ultrasonic sensor, LUX sensor, universal switch and logic block) for different application.
Đặc trưng
- Equipped with LUX sensor, ultrasonic sensor and universal switch, which can be used as logic conditions
- With two logic relationship: OR, AND
- Adjustable ultrasonic sensitivity, Sensitivity range:1-10
- 24 logic blocks in total, each logic block has 20 output targets
- Universal Switch 201 – 248 can be used as logic inputs, two Universal Switches for each logic and they has auto-off option too (from 1 – 3600 seconds)
- A Logic can trigger some targets when it is true, and trigger other targets when it is false
- Security function, to be used with the security module
- Supports update via HDL Buspro Setup Tool
Thông số
Basic Parameters
Working voltage 18~30V DC
Working current 30mA/24V DC
Detection range Φ6m (Installation height: 3m)
Illumination sensing range 0-500lux
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 63(Diameter)×38(mm)
Net weight 91g
Housing material ABS, Infrared lens
Installation
Ceiling-mounted/Flush-mounted
Protection rating (Compliant with EN 60529) IP20
