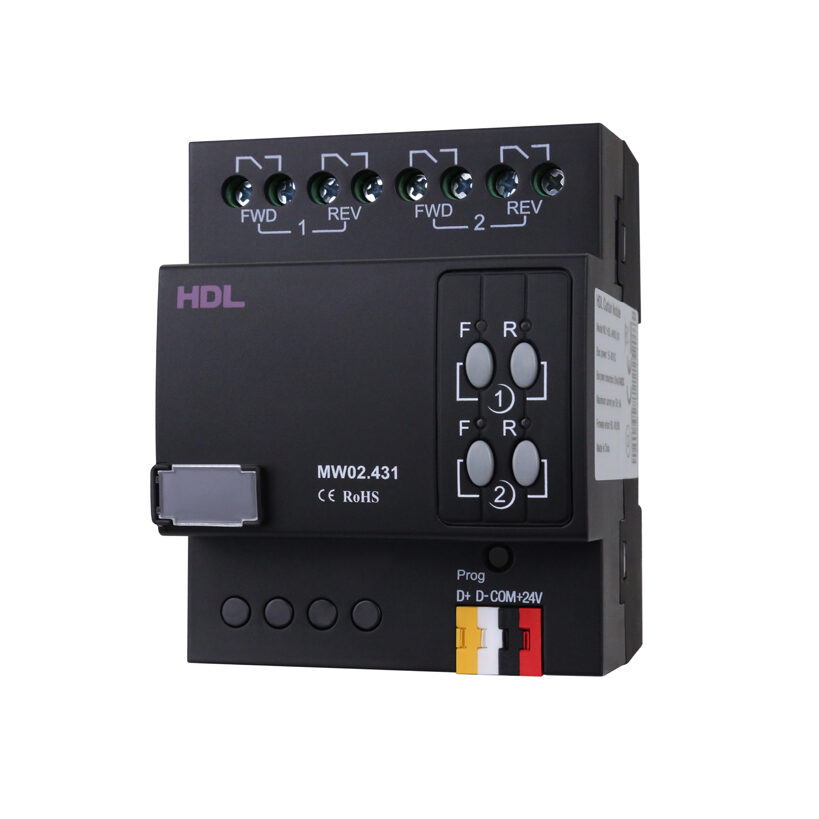

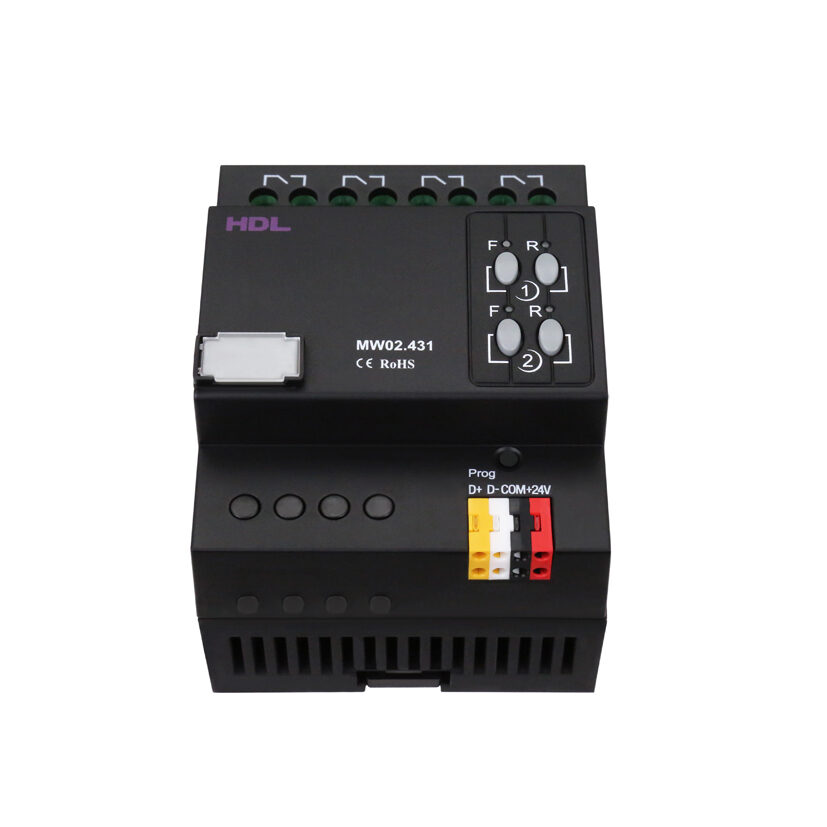

2CH Motorized Curtain Control Module is specially designed for controlling 2ch curtains (shutters) through the controlling of AC motor. Users can make inching control for the shutters, set working time for each channel independently. Operation can be done on iPad and iPhone.
2CH Motorized Curtain Control Module is specially designed for controlling 2ch curtains (shutters) through the controlling of AC motor. Users can make inching control for the shutters, set working time for each channel independently. Operation can be done on iPad and iPhone.
Basic Parameters
Working voltage 15~30V DC Class 2
Working current 35mA/24V DC
Input voltage 120V/240V AC (50/60Hz)
Maximum current of each channel 5A
Electronic life time of relay >60000 (Resistance load)
AC motor type Single-phase capacitor
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 72mm×90mm×64mm
Net weight 250g
Housing material Nylon, PC
Installation

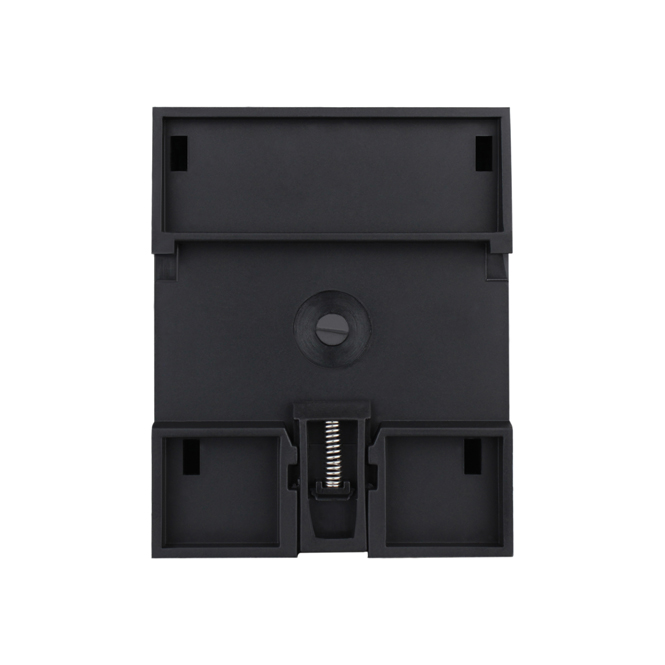

35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
