Description
12CH 10A High Power Switch Actuator has 12 channels (10A for each channel) and 16A magnetic latching relay. With low power consumption and long lifetime, the module has manual control switches and supports scene and sequence control.

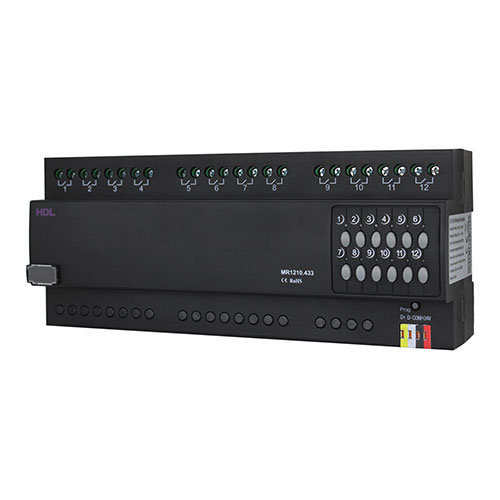

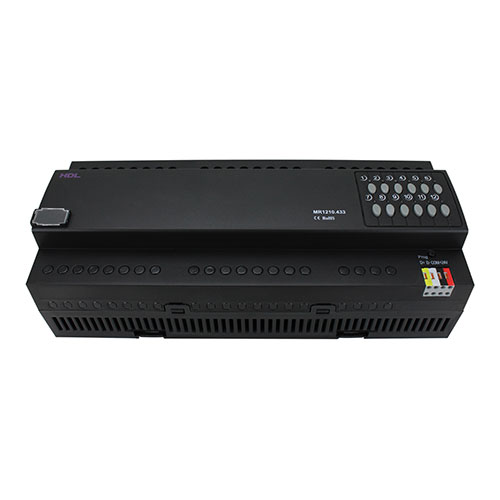

12CH 10A High Power Switch Actuator
12CH 10A High Power Switch Actuator has 12 channels (10A for each channel) and 16A magnetic latching relay. With low power consumption and long lifetime, the module has manual control switches and supports scene and sequence control.
Đặc trưng
- 12-channel relay output unit
- Scene control and sequence control
- Up to 12 separate zones
- 24 scenes for each zone, scene running time up to 60 minutes
- 2 sequences for each zone, up to 12 steps for each sequence
- Light protection delay for each channel (0-60 minutes)
- Mass turn-on delay for each channel(0-25 seconds)
- Manual switch for each channel
- Selected scene or scene before power off automatically activated when device restarts
- LED indicator: indicates current channel status
- HDL Buspro communication
- Supports online upgrade
Thông số
Basic Parameters
Working voltage 15~30V DC Class 2
Working current 40mA/24V DC
Input voltage 120V/240V AC (50/60Hz)
Output channel 12CH/10A
Relay 16A Magnetic latching relay
Maximum current of each channel 10A
Electronic life time of relay >60000 (Resistance load)
Protection Connect a breaker in each channel
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 216mm×90mm×64mm
Net weight 646g
Housing material Nylon, PC
Installation

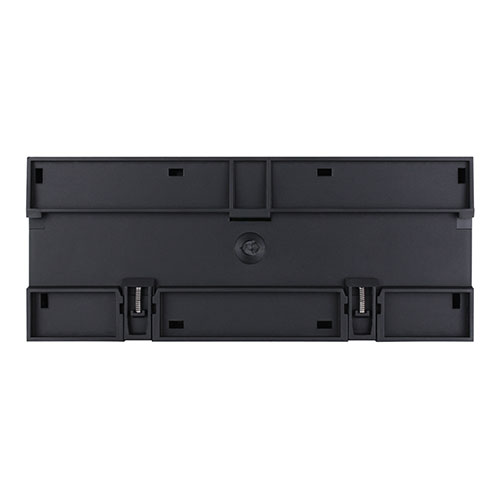

35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
